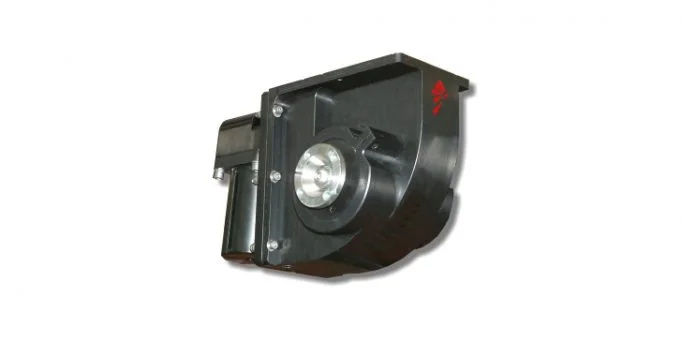

Sub-Atlantic Rotator / Tilt Unit – 24 Vdc

This versatile tilt / actuator unit is used on all Sub-Atlantic’s small electric ROVs for camera positions but also as a latching actuator in our TMS systems.


With feedback potentiometers and adjustable limit switches supplied as standard, these rugged units are the perfect choice for the positioning of industry standard subsea cameras and sensors. The gearing system is overrated to resist damage due to collisions. They are oil filled and positively compensated, making them suitable for operation at extreme depth and can be supplied with a range of electrical connector types.

– 24 Volts DC or 110 Volts AC
– Top Mounting Flange on Pan Shaft
– Low Backlash
– Self-Locking on Power Down
– Position Feedback
– Robust Design
– Adjustable Limit Switches
– Pressure Compensated
– Tested to 6000 msw / 20,0000 fsw
– Can be Inverted

Technical information

See datasheet for more information
