Cable Production

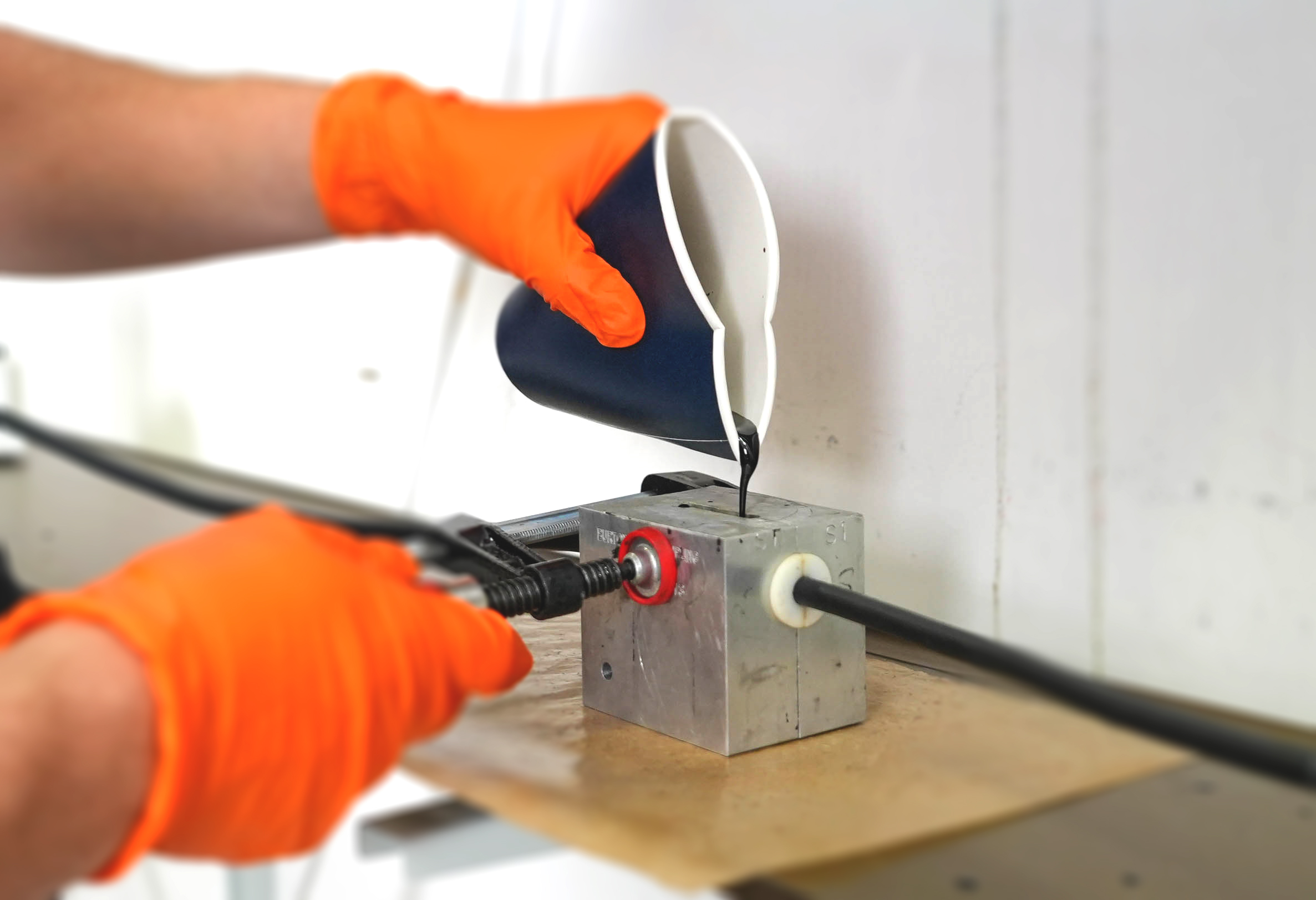

In-House cable moulding and termination capability

Combining a large stock of high quality subsea connector and cables, Innova offer custom cable assemblies.

Representing and stocking world known brands like BurtonSeaconGisma and Hydrovolt , we can offer a quick turn-around on the most commonly used connectors whether supplied individually or as part of an assembly.

We provide reliable cables for the most demanding environments whilst meeting customer requirements. Our highly trained technicians will help to find the best possible solution for you.

Trung_bilde 2_verksted_kabelproduksjon_B&W_m-logo

We can offer

  • Cable and connector termination
  • Water blocks
  • Splice – multiple breakouts
  • Oil filled hose and standard dry mate connectors
  • Encapsulation of PCB boards and RF-id.
  • Insulation testing
  • Cable tags
  • Solidworks, CAD drawing and required documentation
  • On site test, repair, termination & moulding
CableProduction_web_ms

Stock cables

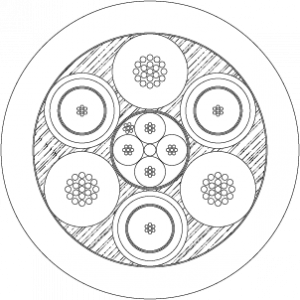

Camera cable 1041477

Camera Cable, 3 coax, 1041477

  • 3 x RG179 75ohm coax
  • 3 x 1,5 mm²
  • 1 x 0,22 mm² Screened Twisted Quad

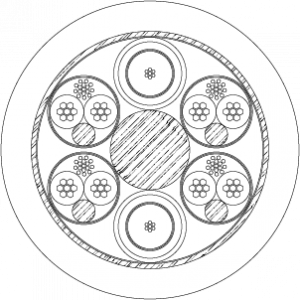

Camera cable 1041001

Camera Cable, twin coax, 1041001

  • 2 x RG179 75 ohm coax

  • 4 x 0,5 mm² STP plain copper conductors

  • Polyester braid

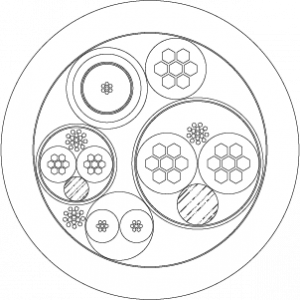

Camera cable 1031073

Camera Cable, Mini TV Cable, 1031073

  • 1 x 75 Ohm coax
  • 1 x 1,34 mm² plain copper conductor
  • 1 x 1,34 mm² STP plain copper conductor
  • 1 x 0,5 mm² STP plain copper conductor
  • 1 x 0,22 mm² STP plain copper conductor
Camera cable 1031071

Camera Cable, 1 coax, 8 single, 2 quad, 1031071

  • 1 x URM70 75 ohm coax
  • 8 x 1,0 mm² stranded plain copper (Uo/U = 0.3/0.5 kVrms max)
  • 2 x screened 0.22 mm² Copper twisted quads
  • Braided Vectran fibre strength member.

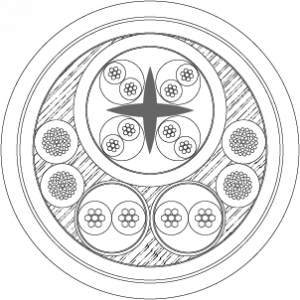

Ethernet cable 1071757

Ethernet Cable, Cat6, 1071757

  • 4 x (2x26AWG) Cat 6, Flexible Bare Copper 19 x 0,10 mm
  • 4 x 1.0 mm² Extra Flexible Bare Copper, according to IEC 60228, Class 6
  • 2 x (2x0,5 mm²) Extra Flexible Bare Copper, according to IEC 60228, Class 6

Special cables

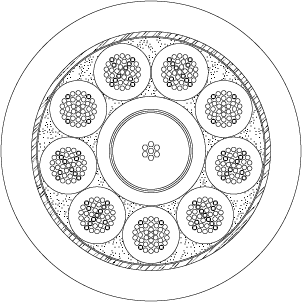

Camera cable 1059772

Camera Cable, 1 coax, 9 x 22awg, 1059772

  • 9 x 22 AWG standard tinned copper
  • 1 x 75 Ohm coax
  • Water blocking compound filler
  • Aramid fiber braid Strength Member

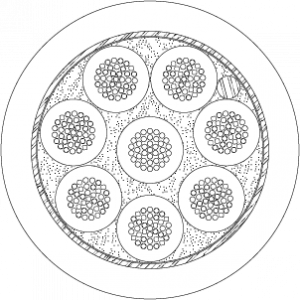

Power-signal cable 1051554

Power/signal cable, 1051554

  • 8 x 1,0 mm² standard copper according to IEC 60228 Cl. ≥ 5
  • Water blocking compound filler
  • Embossed Aramid braid strength member

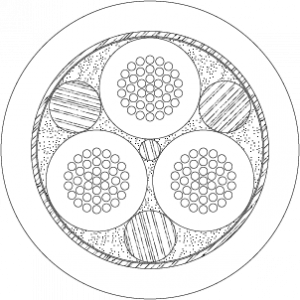

High voltage cable 1069886

High voltage cable, 1069886

  • 3 x 10 mm², (80/0,4 E.P.R Insul)

  • 3 Polypropylene fillers (3,4mm dIa)

A wide selection of subsea cables also available upon request
