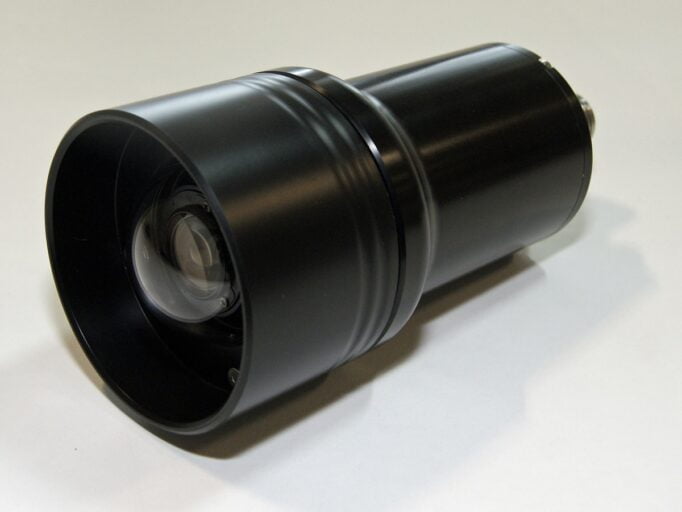

Oceantools C9 Subsea Camera

GigE Vision subsea camera

  • Domed BK7 glass optically corrected viewport
  • AIA GigE Vision v1.2 compliant interface
  • Uses standard Gigabit Ethernet hardware
  • Supports cable lengths up to 100m
  • 2000m rated anodised aluminium housing
Categories: ,


The C9 range of compact monochrome and colour underwater cameras utilise industry leading Sony CMOS sensors with a GigE Vision compliant Gigabit Ethernet interface and global electronic shutter with exposure control. The camera has a wide input voltage range of 10–36VDC or 17–72VDC (PoE) and a wide operating temperature range.

Particular care was taken with the optical design of the water corrected optics to ensure both wide angle viewing and minimal or no distortion through the fully optically corrected front viewing port. Developed for ROV use, the cameras are designed to be as rugged and durable as possible. An anodised aluminium housing rated to 2000m is supplied as standard, with a 6000m rated titanium housing available as an option.

Technical information

GigE Vision Cameras (C9-10 Mono / C9-20 Colour)


  • Standard lens: 6mm
  • Focus: Manually adjustable
  • Depth of field: 100mm to infinity
  • FOV in air: 66.1°(H) X 50.8°(V)


  • Sensor type: 1/1.8” SONY CMOS
  • Pixel resolution: 2048(H) x 1536(V) 3 Megapixel
  • Frame rate 55 fps (burst mode)
  • Dynamic range: 76.4dB
  • Video output: AIA GigE Vision v1.2 compliant
  • Video format: 8- or 12-bit Monochrome (C9-10 Mono) / 8- or 12-bit Bayer / RGB / YUV (C9-20 Colour)

Environmental & Electrical

  • Operating depth: 2000m
  • Operating temperature: – 10°C to +50°C
  • Data output: Gigabit Ethernet (1000 Mbps)
  • Voltage: 10-36VDC or 17-72VDC (PoE)
  • Current: 300mA typical


  • Length incl connector: 195mm
  • Length excl connector: 145mm
  • Diameter: 80mm max, 65mm body
  • Weight in air: 1.1kg
  • Weight in water: 0.8kg
  • Housing material: Anodised Aluminium
  • Viewing port material: High Performance BK7 Glass
  • Standard connector: CRE FRA12MBA106601 ( alternatives available)
