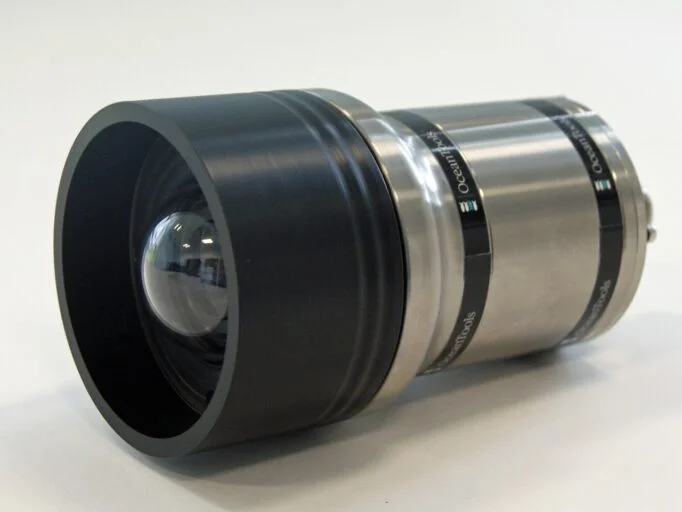

Oceantools C5 Subsea Camera

Superior low light camera

  • 570TVL CVBS video output
  • Suited for ultra low light deepwater use
  • Wide angle aspherical lens
  • 6000m standard depth rating
Categories: ,


The C5 camera has been designed to provide high resolution and high contrast monochrome video whilst operating in extremely low light level underwater conditions. The cost-effective camera is equipped with a wide angle aspherical lens providing an angle of view underwater of 105 degrees (diagonal) through its quartz optically corrected front port. This true SIT replacement camera has a Wide Dynamic Range providing superb video quality under all lighting conditions without the introduction of noise or motion blur.

The housing is manufactured from Grade 5 Titanium to operate down to 6000 metres. The camera is protected internally from overvoltage, reverse voltage and surge protection.

Technical information

  • Lens type: Wide Angle, Aspherical, High Speed
  • Underwater angle of view: 105 °(Diagonal)
  • Sensor type: 1/2” CCD
  • Minimum illumination: 2.5 x 10 6 lux
  • Output resolution: 570 TVL
  • Video output: 1V p p CVBS 75 Ω (CCIR & EIA)
  • S/N ratio: ≥ 52dB
  • Input voltage: 12-26VDC
  • Maximum current: 160mA @ 12VDC
  • Depth rating: 6000m
  • Housing material: Titanium
  • Window: Quartz Water Corrected
  • Standard connector: Glenair G5506 1508 (others on request)
  • Length ( excl connector): 145mm
  • Diameter (cowl): 90mm
  • Diameter (main body): 75mm
  • Weight in air: 1.5kg
  • Weight in water: 0.8kg
  • Operating temperature: – 10 C to +50 C
