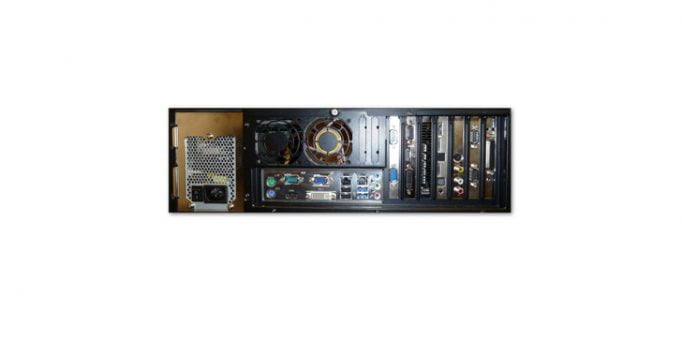

Options VideoLogger VL2-SD

Integrated 1 to 3 channel video overlay and H.264 recording system


Videlogger VL2-SD Features

  • 1 to 3 channel Video overlay, standard PAL or NTSC (HD 1080i available as option with external overlay boxes, one box required per channel, see VL2-HD datasheet)
  • 1 to 3 channel Video logging PAL / NTSC / HD 1080i to H.264 format
  • Serial ports and network for flexible decoding of data from ROV and survey
  • Put dynamic data from survey/ROV anywhere on overlay. Also logo insertion
  • Live realtime video output with overlay. (also preview on PC, but with ca 1sec compression delay)
  • Stillpicture snapshot during recording and during playback
  • Realtime mirror logging to client disk or e.g. Network storage
  • Video event log linked directly to video pictures. Video events are typed in by operator, or easy point&click operation from predefined list
  • Easy retrieval of video clips by double-clicking on video events. Video playback will then start off exactly at the position where event was linked to the video
  • For PAL/NTSC: Easy production of DVD movies based on selection of events, and timespan for each event (IMPORTANT NOTE: H.264 will need to be converted to MPEG2, this can be timeconsuming)
  • Also function for Highlight-DVD based on start/stop flags set by operator during recording or playback. Burn highlight directly to DVD, or export the clips to a highlight archive project
  • Video-DVD’s will have DVD-menu with menu-text from related events recorded in VideoLogger
  • Removable harddrives for extended storage
