Options VideoLogger VL2-HD

Integrated HD-SDI / HDMI video overlay and recording system, 1 to 4 channels


Videologger VL2-HD Features

  • Up to 4 channel overlay – HD-SDI, 1080i format
  • Up to 4 channel recording, H.264 format, 1080i, max 20Mbit per channel
  • 8 serial ports, 2 network ports
  • Well proven system – same VIGRA and Videologger software used by more than 250+ Videologgers in the North Sea area and worldwide (mix of SD and HD video systems)
  • Realtime live overlay output to HD-SDI monitors without any noticeable delay

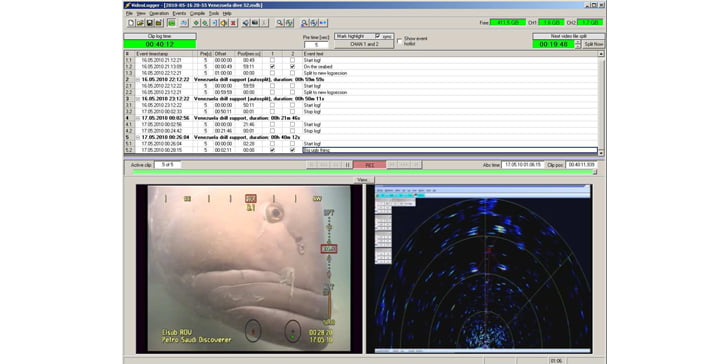

  • Video preview on PC monitor during recording – NOTE: 1-2 second delay on PC preview
  • Stillpicture and videoclip snapshot during recording and during playback
  • Dive/video event log linked directly to video. Events are typed in by operator, or easy point&click operation from predefined list
  • Easy retrieval of video clips by double-clicking on video events. Video playback will then start off exactly at the position where event was linked to the video
  • Flexible overlay based on VIGRA overlay system and COMServer for decoding data
  • Optional logging of ROV/Survey data strings
  • Removable harddrives for extended storage
  • 3U rack computer, pluss 1U box per overlay channel (2 boxes fit side by side in 19” rack)
  • Part number: VL2HD-NxM, N/M=1-4, based on number of overlay/logging channels
