Ocean Matrix™
The Ocean Matrix™ is modified version of our MKII+ with a depth rating of 4000m. The Ocean Matrix™ is the standard multiplexer for one of the leading global ROV companies.
Description

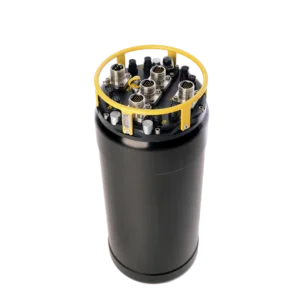

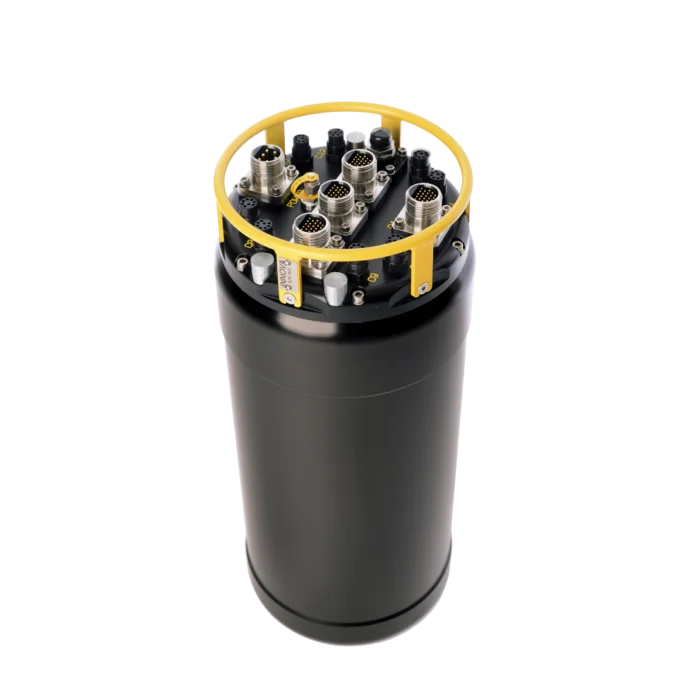

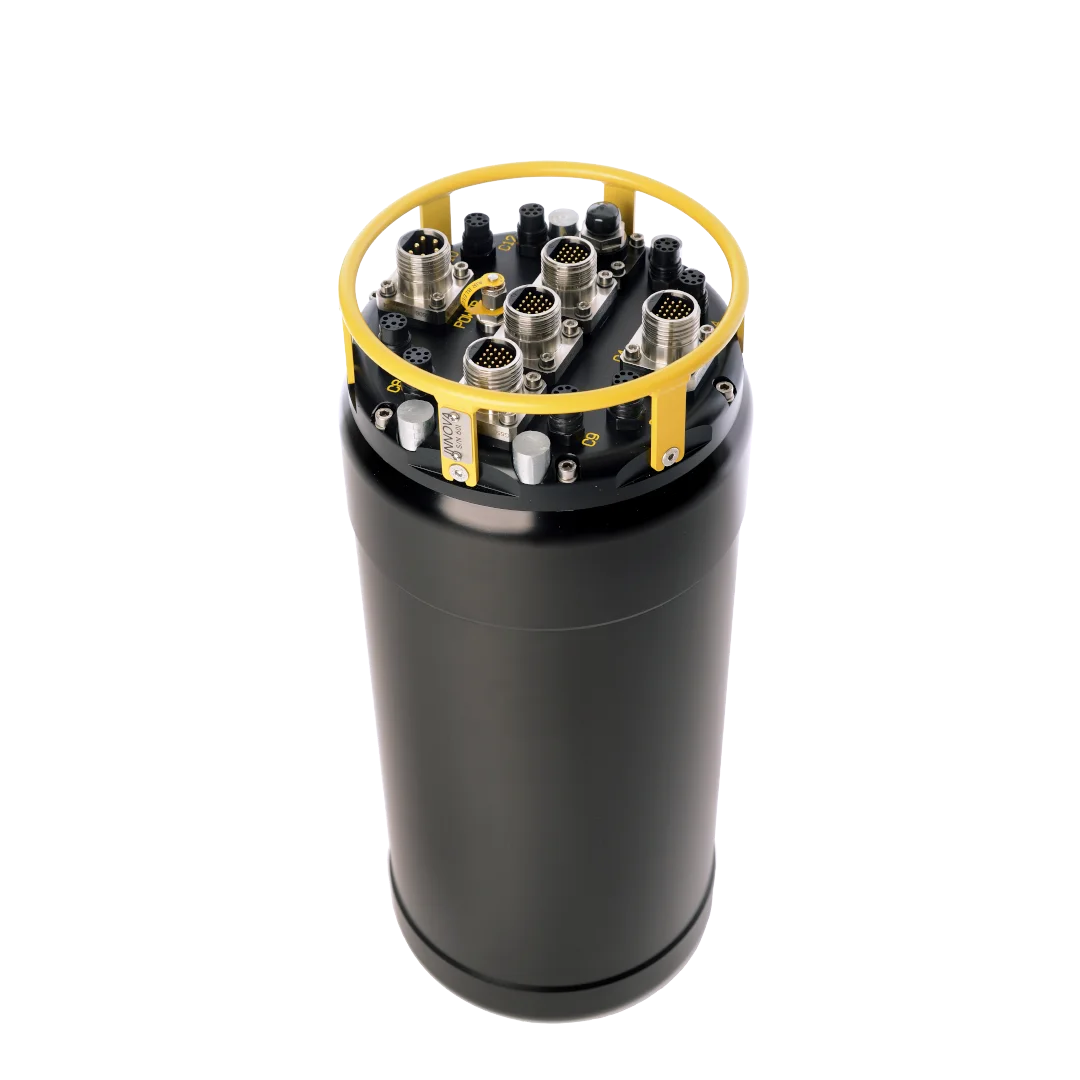

The Ocean Matrix™ is a stand-alone fibre optic multiplexer and control solution, providing a simple, plug and play interface for a large array of sensors and equipment to any remotely operated system. The system consists of a compact, one-atmospheric subsea unit rated for 4000 MSW, and a 19” rack mounted topside unit.
Check out other products of our Matrix™ family: Micro, Mini, MKII+, and MKII+E
Technical information

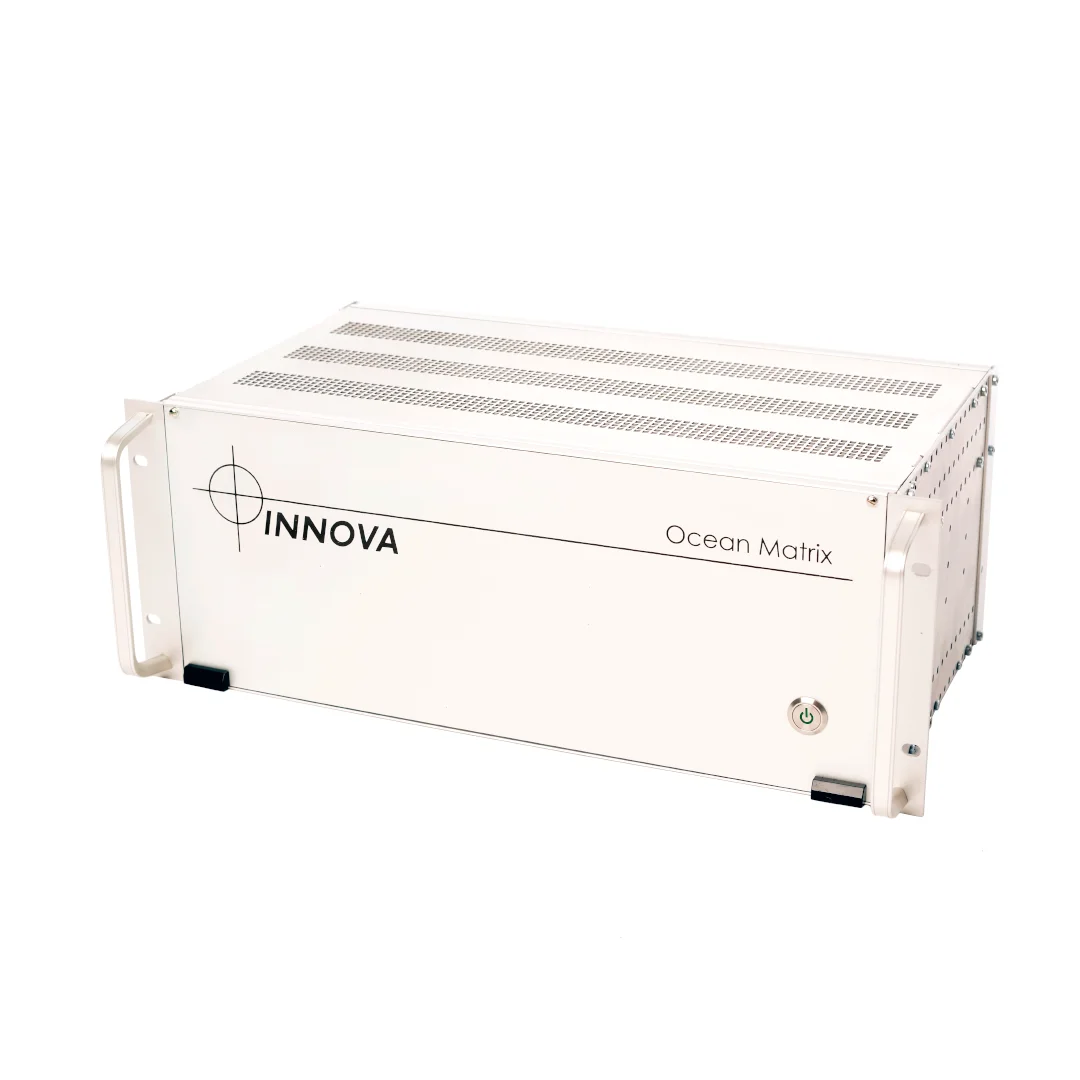

Topside:
- Voltage and current monitoring
- Alarm / warning logging
- Operational hours logged
- Web browser based interface for mirrored control
- Ethernet connection for control
- 19” 4U rack mount
- Weight: 6.5 kg
Power input:
- Subsea: 85-264 VAC (47-63 Hz) / 120-370 VDC
- Topside: 90-265 VAC (47-63Hz)
Power output:
- Software resettable fuses on DC power output (excl. C4)
- 2 x 24 VDC / 48 VDC noise attenuated 6A – Software switchable
- 1 x 24 VDC (6A) fixed output – Hardware switchable
- 1 x 24 VDC (6A) fixed output (glass fused)
- 7 x 24 VDC (2A) outputs 2-pole relay
- 1 x 110 VAC 2-pole relay output (glass fused)
- 1050 W available DC power
Signal interface:
- 7 x RS232
- 4 x Software switchable RS232 / RS485
- 3 x 1 Gbps Ethernet
- 3 x 100 Mbps Ethernet
- 2 x 5 V TTL trigger
- All serial and trigger interfaces are isolated
Mechanical properties:
- Aluminium 6082-T6, hard anodized
- Dimensions: D 245 mm (240 mm), L 596 mm
- Weight Canister: 42 kg (air), 17 kg (sea)
- Depth rating: 4000 MSW
Other:
- Two-stage noise attenuation filter on power input
- Humidity sensor subsea
- Temperature sensor topside and subsea
- DC ground fault detection system
- Fibre and SFP diagnostics
- Control board diagnostics
- Water ingress detection

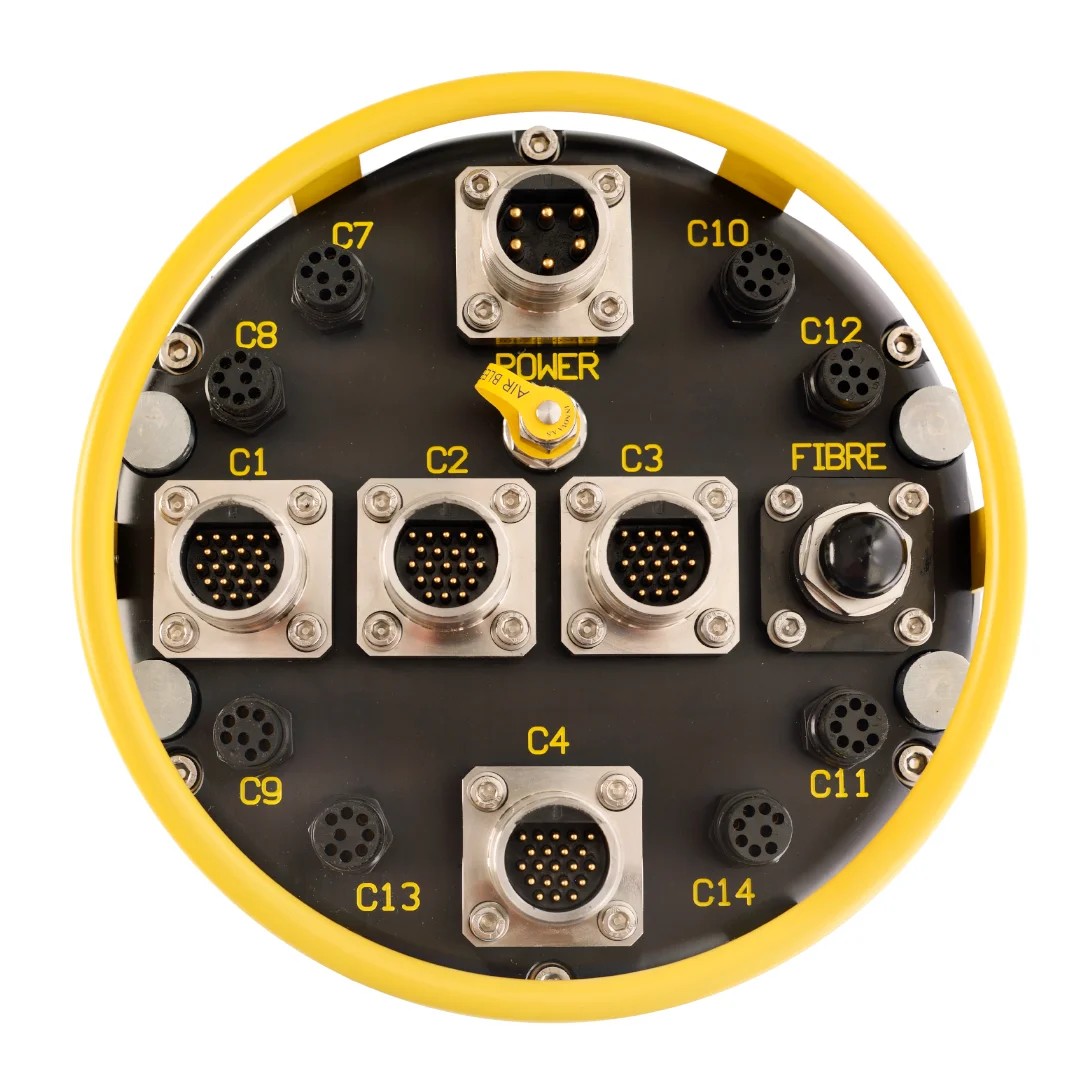

Connectors:
- C1 5506-2021 1 Gbps Ethernet, RS232, 24 / 48 VDC (6A), (SW switchable)
- C2 5506-2021 1 Gbps Ethernet, RS232 24 / 48 VDC (6A), (SW switchable)
- C3 5506-2021 2 x 100 Mbps Eth, RS232 / RS485, (SW switchable), 5V TTL (PPS) 24 VDC (6A), Optional: 48 VDC (3A), (HW switchable)
- C4 5506-2021 1 Gbps Ethernet, RS232, 5V TTL (PPS) 24 VDC (6A)
- C7 MCBH8F RS232 24 VDC (2A)
- C8 MCBH8F RS232 24 VDC (2A)
- C9 MCBH8F 100 Mbps Eth, 5V TTL (PPS) 24 VDC (2A)
- C10 MCBH8F RS232, 5V TTL (PPS) 24 VDC (2A)
- C11 MCBH8F RS232 / RS485, (SW switchable) 24 VDC (2A)
- C12 MCBH6F RS232 110 / 230 VAC (2A), (= input voltage)
- C13 MCBH8F RS232 / RS485, (SW switchable) 24 VDC (2A)
- C14 MCBH8F RS232 / RS485, (SW switchable) 24 VDC (2A)
- Fibre 472-F-BCR, SM Topside<->Subsea Single mode
- Power G5506-2006 85-264 VAC (47-63 Hz) / 120-300 VDC
