Matrix™ Mk II+ E
The Innova Matrix™ MK II+ E is a compact fiber optic multiplexer and control solution with a plug and play interface for a large array of sensors with a total of 7 Ethernet channels.
Description

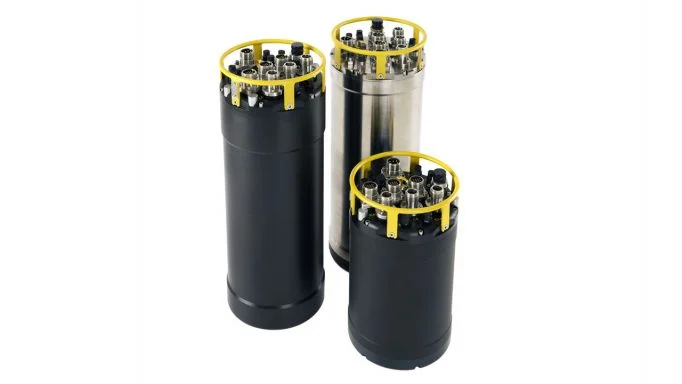

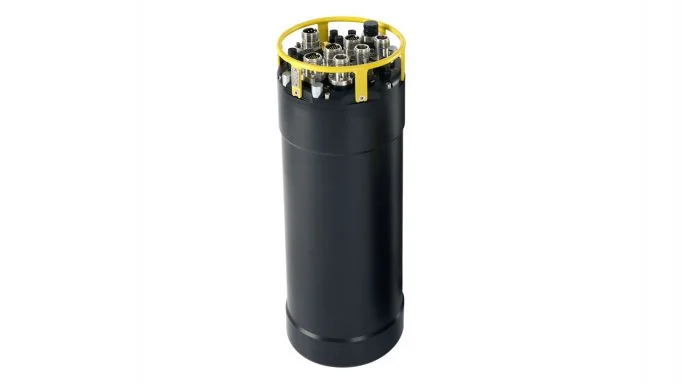

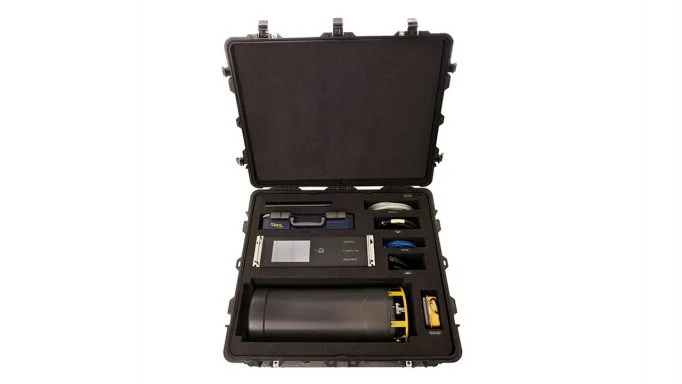

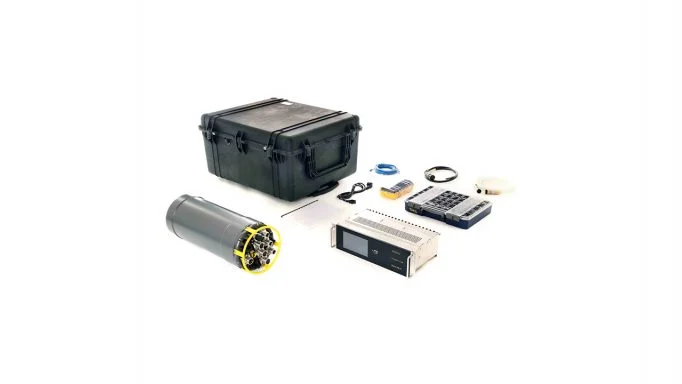

The Matrix is a stand-alone fibre optic multiplexer and control solution. A plug and play interface for remotely operated systems, supporting a large array of sensors and equipment. The system consists of a compact, one-atmospheric subsea unit rated for 3000 MSW, and a 19” rack mounted topside unit with touch screen and status for all channels on the screen.
Check out other products of our Matrix family: Micro, Mini, Ocean, MKII+
Technical information
Topside:

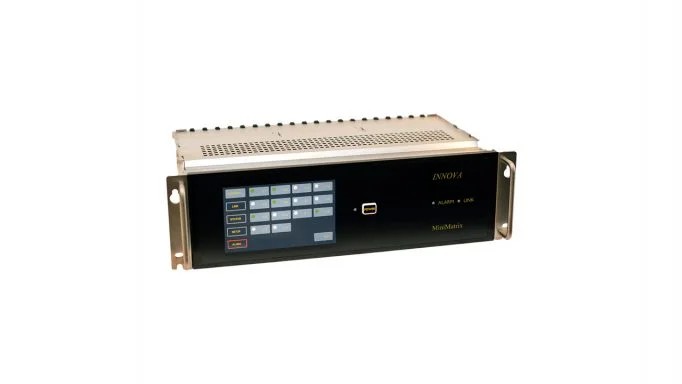

- 7″ Linux based touch screen interface for control and diagnostics
- Status for all channels on screen
- Voltage and current monitoring
- Alarm / warning logging
- Operational hours logged
- Web browser based interface for mirrored control
- Ethernet connection for control
- 19″ 3U rack mount
Power input:
- Subsea: 85-264 VAC (47-63 Hz) / 120-370 VDC
- Topside: 90-265 VAC (47-63Hz)
Power output:
- Software resettable fuses on DC power output
- 2 x 24 VDC / 48 VDC noise attenuated 6A. Software switchable
- 1 x 24 V, 6A / 48 VDC, 3A. Fixed output. Hardware switchable
- 10 x 24 VDC 2A outputs 2-pole relay
- 1 x 110 VAC 2-pole relay output (glass fused)
- 1050 W available DC power
Signal interface:
- 6 x RS232
- 3 x Software switchable RS232 / RS485
- 2 x 1 Gbps Ethernet
- 7 x 100 Mbps Ethernet
- 3 x HD-SDI
- 2 x 5 V TTL trigger
- All serial and trigger interfaces are isolated
Mechanical properties:
- Aluminium 6082-T6, hard anodized or Titanium Gr. 5
- Dimensions: D 230 mm (223 mm) L 596 mm
- Depth rating Aluminium 6082-T6: 3000 MSW
- Depth rating Titanium Grade 5: 5000 MSW
- Shock and vibration: According to ISO 13628-6
Other:
- Two-stage noise attenuation filter on power input
- Humidity sensor subsea
- Temperature sensor topside and subsea
- DC ground fault detection system
- Fibre and SFP diagnostics
- Control board diagnostics
- Water ingress detection

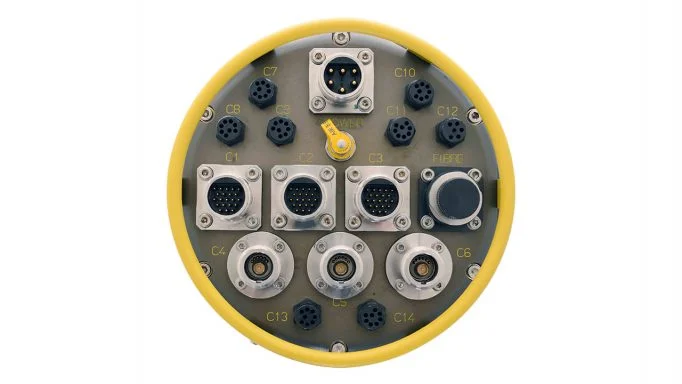

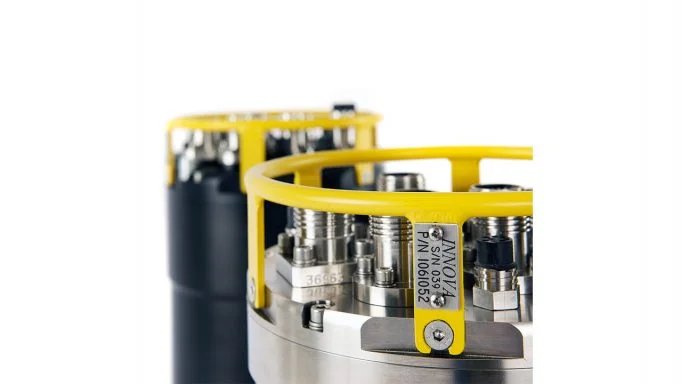

Connectors:
- C1 5506-2021 1 Gbps Ethernet, RS232, 5 V TTL (PPS) Sync with C2 24 / 48 VDC (6A) (SW switchable)
- C2 5506-2021 1 Gbps Ethernet, RS232, 5 V TTL (PPS) Sync with C1 24 / 48 VDC (6A) (SW switchable)
- C3 5506-2021 2 x 100 Mbps Ethernet, RS232 / RS485 (SW switchable) 5 V TTL (PPS) 24 / 48 VDC (6A) (SW switchable)
- C4 455-L-FCR-75 Ω Camera 1 (HD-SDI), RS232 24 VDC (2A)
- C5 455-L-FCR-75 Ω Camera 1 (HD-SDI), RS232 24 VDC (2A)
- C6 455-L-FCR-75 Ω Camera 1 (HD-SDI), RS232 24 VDC (2A)
- C7 MCBH8F 100 Mbps Ethernet 24 VDC (2A)
- C8 MCBH8F 100 Mbps Ethernet 24 VDC (2A)
- C9 MCBH8F 100 Mbps Ethernet, 5 V TTL (PPS) 24 VDC (2A)
- C10 MCBH8F 100 Mbps Ethernet, 5 V TTL (PPS) 24 VDC (2A)
- C11 MCBH8F 100 Mbps Ethernet 24 VDC (2A)
- C12 MCBH6F RS232 110 / 230 VAC (2A) (= input voltage)
- C13 MCBH8F RS232 / RS485 (SW switchable) 24 VDC (2A)
- C14 MCBH8F RS232 / RS485 (SW switchable) 24 VDC (2A)
- Fibre OPT-G4-SM Topside <-> Subsea Comms (Optional Schilling fibre interface)
- Power G5506-2006 85-264 VAC (47-63 Hz) / 120-370 VDC
