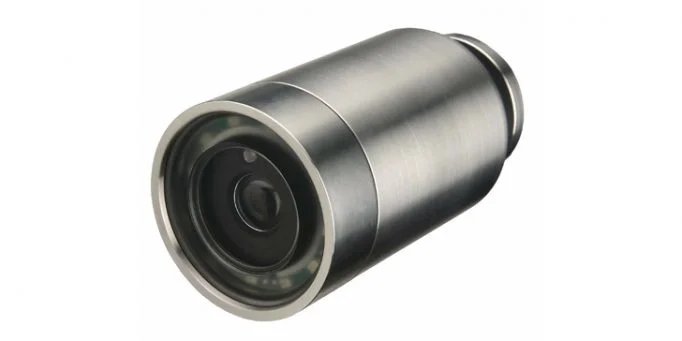

Tritech Super SeaSpy – Colour CCD Camera

The Tritech Super SeaSpy underwater video camera is a compact, high resolution, full colour camera with integral low voltage lighting.

Categories: ,


Built to survive the harsh underwater inspection environment, the Super SeaSpy has been designed to be compact and rugged whilst providing high quality colour video.
The Super SeaSpy incorporates a ring of white LEDs which provide uniform illumination over the field of view.
The LED Engine utilises Dynamic Light Control (DLC) which automatically adjusts the lighting level to optimise video image quality, regardless of the reflectivity of work surface.
This feature also helps enhance picture quality by reducing the amount of backscatter from suspended particles in the water column.
The Super SeaSpy is fitted with a water corrected lens system which optimises the picture quality by reducing radial distortion and reducing chromatic aberration.

Technical information

PAL: Vertical resolution 550 lines
Scanning system: 625 lines at 50 Hz
NTSC: Vertical resolution  470 lines
Scanning system  525 lines at 60 Hz
CCD module: 1/3″ Interline Transfer CCD
Viewing angle:  72° in water (diagonal)
Focus range:  50mm to infinity
Primary lens:  Fixed, 4.2mm (f/2.2) Ivanoff water corrected optics
Iris control:  Auto Iris
Video output:  1V peak to peak composite, 75Ω unbalanced
Signal to noise ratio:  >48dB (AGC off)
Other features:  Auto white balance, back light compensation, gamma correction

Minimum illuminance:  0.5 lux
Illumination:  10lux at 1m and 110 lux at 0.3m
Illumination control:  Dynamic Light Control, on/off, manual override

Electrical and Communication
Power requirement:  12 to 48V DC (drawing 4.8W at 24V)
Standard connector:  Tritech 6-pin connector
Optional connector:  Schilling SeaNet

Weight in air:  0.65kg
Weight in water:  0.45kg
Depth rating:  4000m
Operating temperature:  -10 to 35°C
Storage temperature:  -20 to 50°C
Shock:  30gn for 6ms in each axis (operating)
Vibration:  Sinusoidal sweep & dwell in each axis from 5 to 150Hz at 10gn (operating)
Materials:  Housing: Stainless steel 316 Lens: Water corrected optical acrylic
Diameter:  53mm
Body length:  82mm
Overall length:  99mm (with Tritech connector)


tritech-super-seaspy-colour- camera-Datasheet
