Micro Matrix™ Upgrade for Observation ROV

Overview

Innova supported a survey contractor in upgrading an observation-class ROV (Argus) to enable high-performance multibeam survey operations, significantly expanding its data and integration capabilities.

Challenge

The main challenge was enabling high-bandwidth data transfer for multiple survey sensors on an ROV not originally designed for such capacity. This included supporting two multibeam echosounders and a navigation system, while overcoming limitations in both onboard communication and fiber optic transmission.

Solution

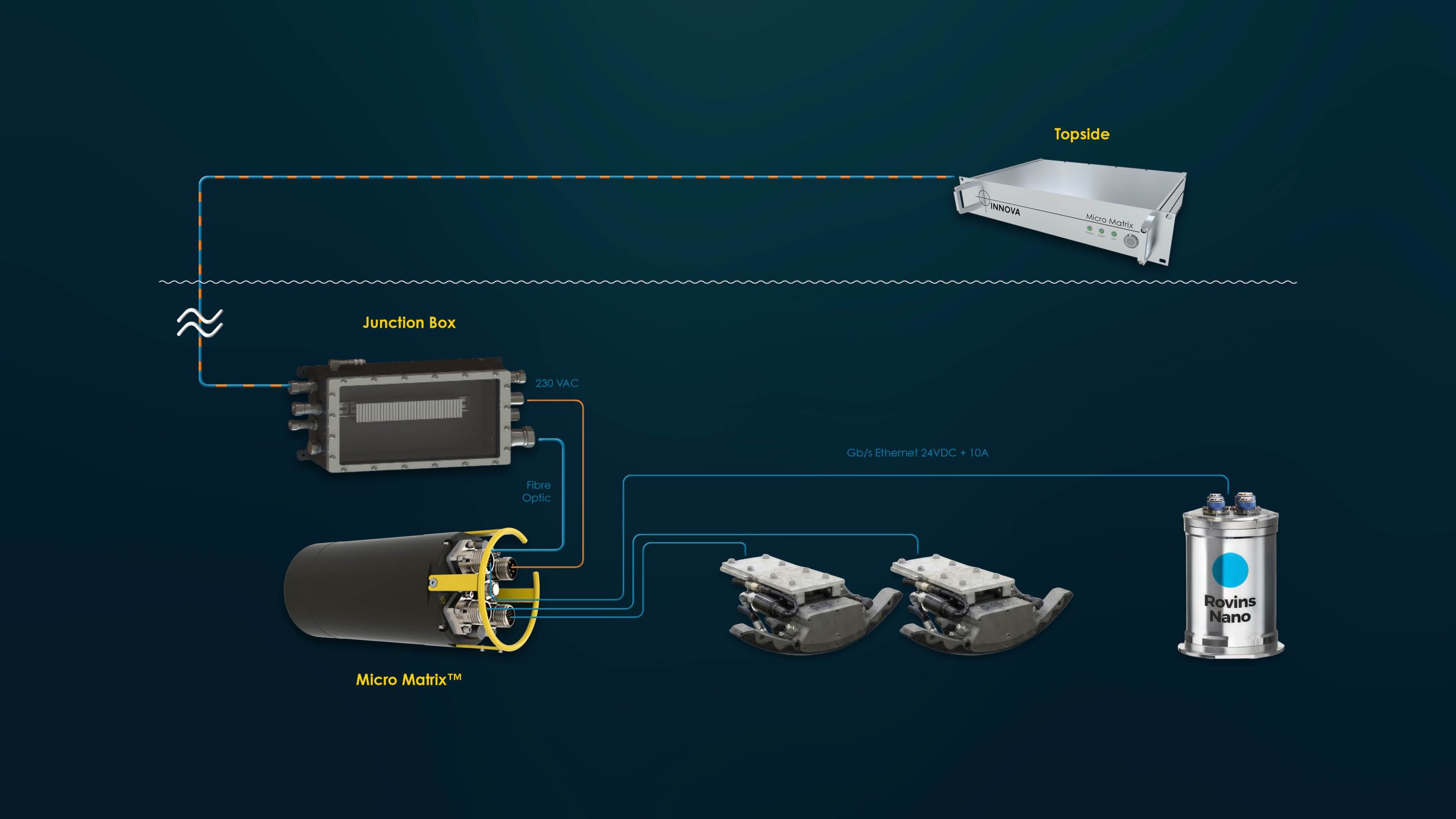

Innova delivered a MicroMatrix-based upgrade that enhanced both communication and power capabilities, featuring:

• Three dedicated Gigabit Ethernet channels for high-speed data transfer

• Additional serial interfaces and tailored power distribution for survey payloads

• A replacement dual-fiber Focal slipring to overcome bandwidth limitations

The system established a separate network for the survey payload, ensuring stable performance without impacting ROV control systems.

Result

A flexible and cost-efficient solution that enables advanced multibeam survey operations from a compact ROV platform—delivering high data performance, simplified integration, and reliable operation in the field.

Key Facts

• Environment: Subsea / Survey operations

• System Type: MicroMatrix integration upgrade

• Communication: Gigabit Ethernet, serial interfaces

• Application: Multibeam survey (Norbit MBE, ROVINS)
