Custom Valve Pack for Subsea Pipeline Repair

Overview

Innova partnered with a customer to deliver a custom valve pack for a remotely operated subsea repair tool, designed for deepwater habitat operations at depths of up to 1000 meters.

Challenge

The main challenge was achieving near leak-free performance while handling both water and pressurized air in the same system. This was critical for creating and maintaining a dry habitat, placing strict demands on sealing integrity, reliability, and system robustness.

Solution

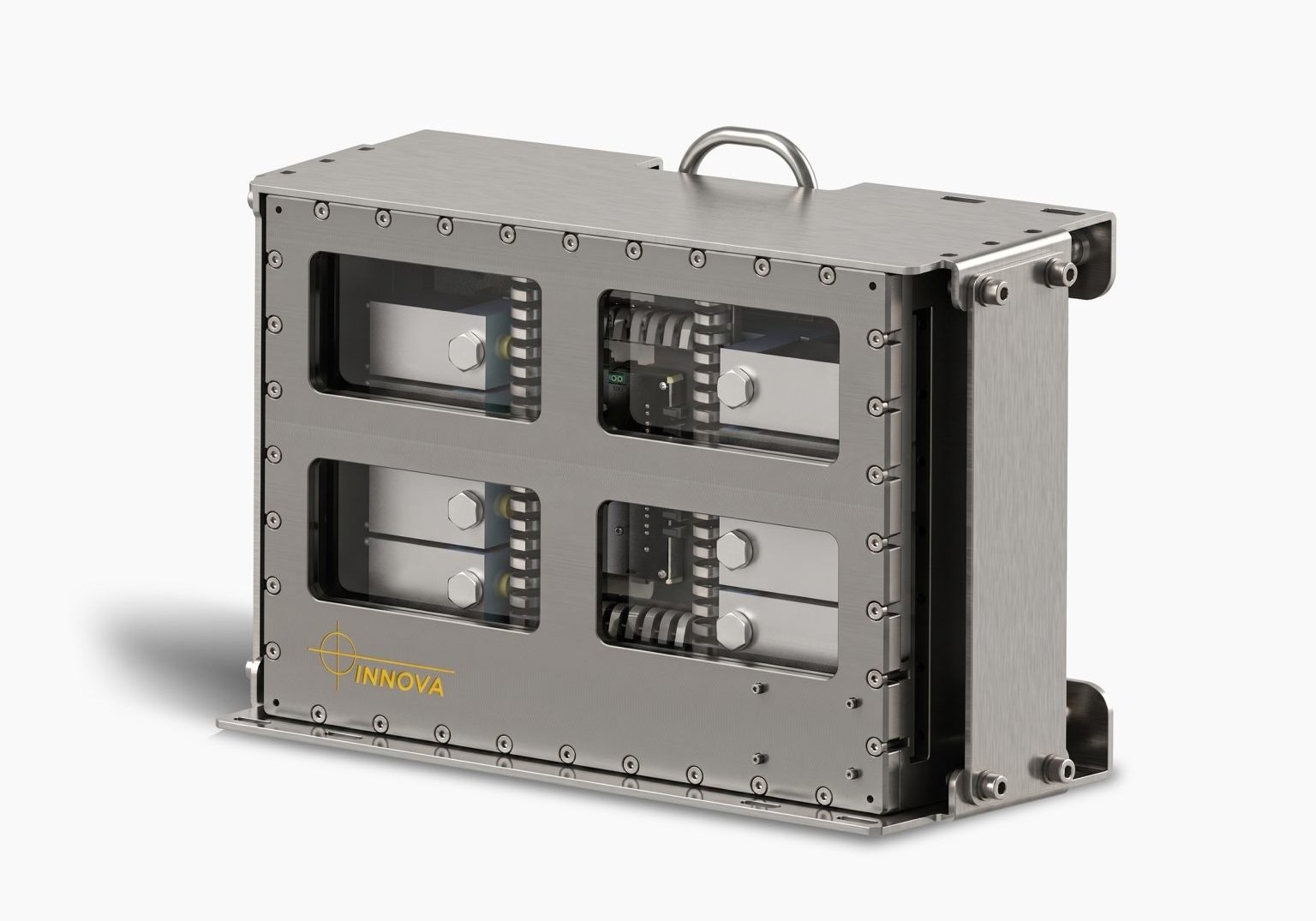

Innova developed a tailored solution based on its proven PIO36 platform, featuring:

• Precise control via Ethernet using Modbus TCP
• Seamless integration with the operator’s system
• Support for external sensors enabling real-time monitoring and safe operation

The system was engineered to perform consistently across varying pressures and fluid conditions.

Result

A compact and highly reliable valve system that maintains habitat integrity, reduces leakage risk, and enables safe, efficient subsea pipeline repair in demanding environments.

Key Facts

• Environment: Subsea / Deepwater (up to 1000 m)
• System Type: Custom valve pack (PIO36-based)
• Control Interface: Modbus TCP / Ethernet
