Tritech Micron Gemini

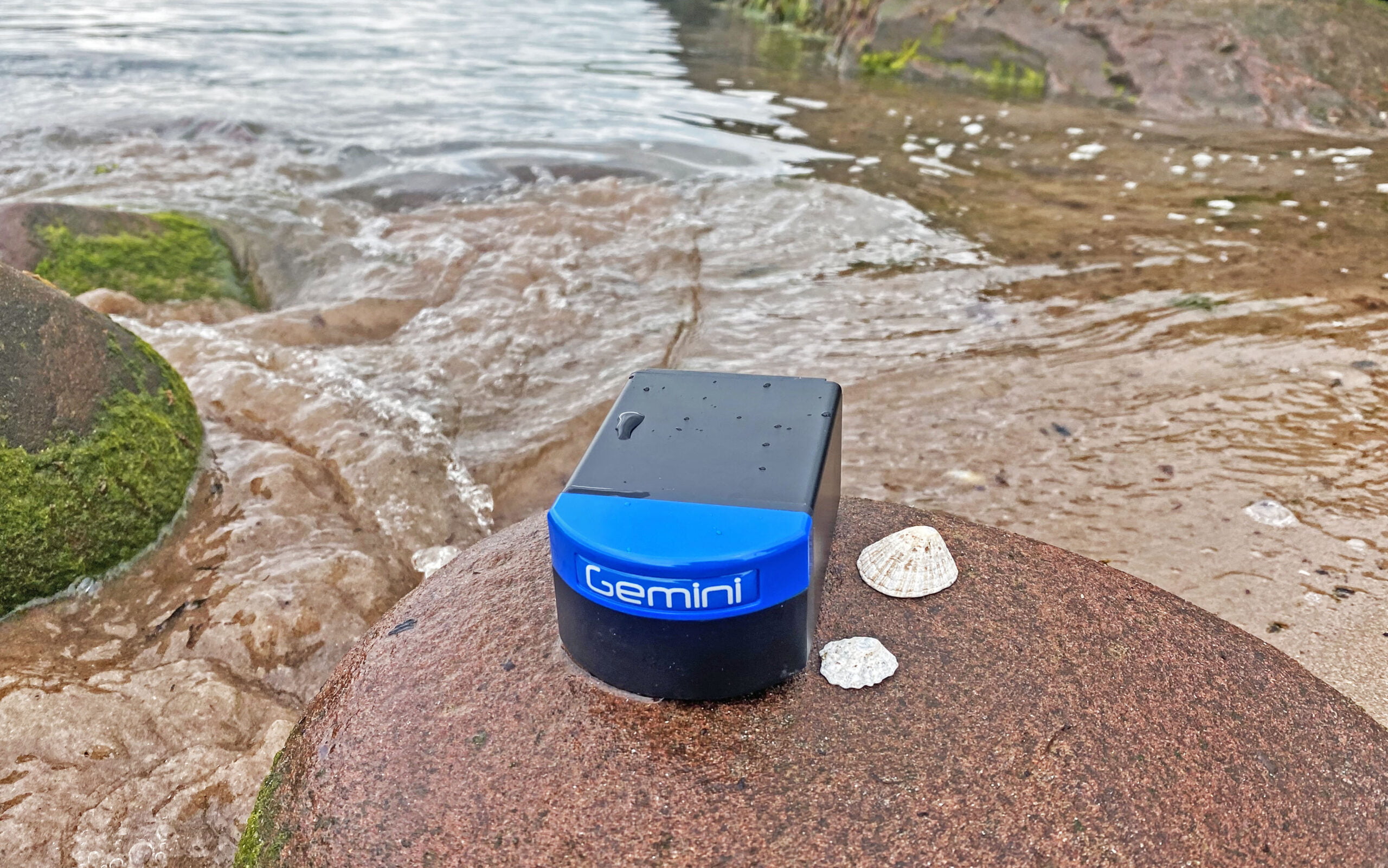

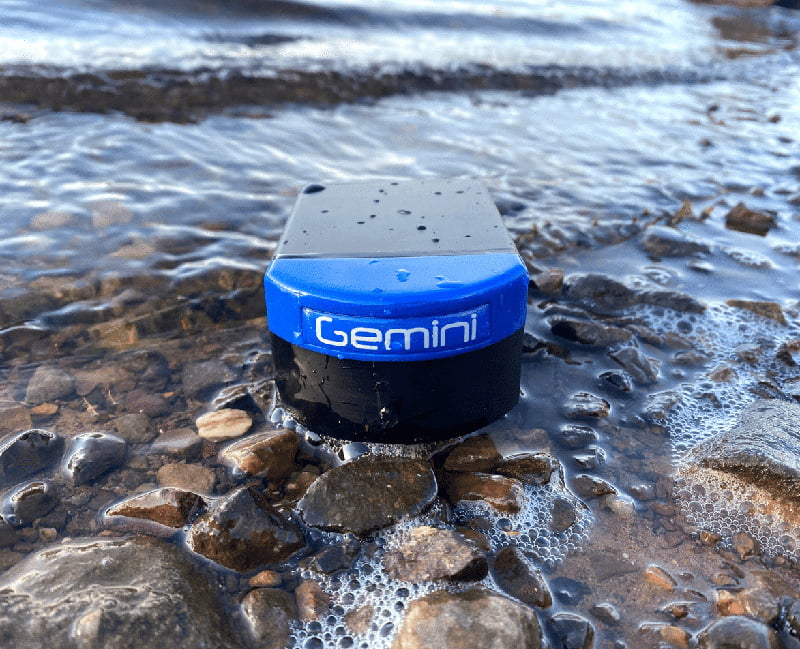

The Micron Gemini is the latest addition to Tritech’s Micron and Gemini product families and offers powerful, real-time sonar imaging in the body of a Gemini 720im. With greatly improved image quality, a 90 horizontal field of view and 50m range, the Micron Gemini offers cost effective obstacle avoidance and navigation for small ROVs and AUVs.
Description
With Tritech’s advanced processing electronics, the Micron Gemini operates at 720kHz, to produce images of outstanding clarity. The system benefits from 128 beams and an effective angular resolution of 0.7.
The Micron Gemini comes with a built in pressure sensor which provides a depth reading, as well as optional AHRS.
The Micron Gemini has incredibly compact dimensions and is ideally suited for micro ROV/AUV applications when real-time, video-like imagery is required, and where space is restricted or weight is critical, such as diver helmet and pole mounted applications for Search and Recovery (SAR) operations.
Technical information
Key specifications
- Operating frequency 720kHz
- Angular resolution 2.34° acoustic, 0.7° effective
- Range 0.2m to 50m / 0.6ft to 164ft
- Supply voltage 12 to 48V DC
- Power requirement 8.5W
- Main port protocol Ethernet (100Base-T) and/or Serial (RS232 or RS485)
- Dimensions 116mm x 63mm x 40mm / 4.57in x 2.49in x 1.58in
- Depth rating 300m / 1148ft or 750m / 2460ft
- Weight in air 0.43kg / 0.97lbs
- Weight in water 0.24kg / 0.53lbs
Integrated sensors
- Pressure sensor*1 Depth: ±2m Temperature: ±2°C
- AHRS*2 Bearing accuracy: 2° RMS Roll & Pitch accuracy: 1.5° RMS (static)
Acoustic specification
- Operating frequency 720kHz
- Angular resolution 2.34° acoustic, 0.7° effective
- Range 0.2m to 50m / 7.9in to 164ft
- Number of beams 128
- Horizontal beamwidth 90°
- Vertical beamwidth 20° (±10° about horizontal axis)
- Range resolution 8mm / 0.31in
- Update rate 3 to 20Hz (range dependent)
- Mode of operation CW, CHIRP or Auto
Interface
- Supply voltage 12 to 48V DC
- Power requirement 8.5W
- Main port protocol Ethernet (100Base-T) and/or Serial (RS232 or RS485)
- Auxiliary port protocol Serial (RS232 or RS485)
- Connector type Main: Impulse MKS(W)-3L10, Impulse MKS(W)-307 & Tritech Micron Aux: Tritech Micron
Physical specification
- Dimensions 116mm x 63mm x 40mm / 4.57in x 2.49in x 1.58in
- Depth rating 300m or 750m / 984ft or 2460ft
- Weight in air 0.43kg / 0.97lbs
- Weight in water 0.24kg / 0.53lbs
- Temperature rating (operating) -10°C to 35°C / 14°F to 95°F
- Temperature rating (storage) -20°C to 50°C / 4°F to 122°F
Software
- Genesis: (Included at no additional cost) OS: Microsoft Windows 7, 10 Processor: 2GHz (Minimum), 3GHz Quad Core (Recommended) Graphics: 3D hardware accelerated graphics card
- SDK Windows, Linux (Available on request)
Specification subject to change in line with Tritech’s policy of continual product development
*1 Default. Applicable to 300m depth rated variant only
*2 Additional extra
