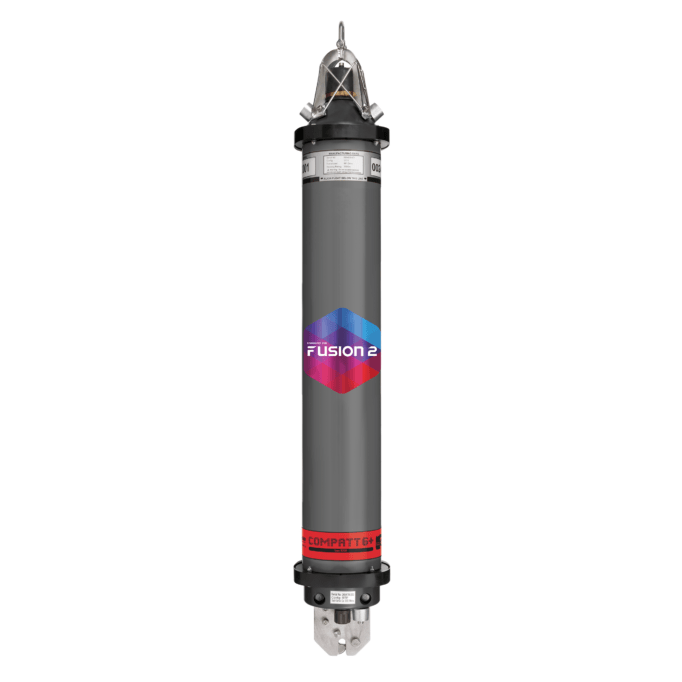

Sonardyne Compatt 6+ LBL Transponder

Compatt 6+ is the new Wideband® 2 and Wideband 3 enabled transponder compatible with all 6G® equipment and Sonardyne’s latest 6G LBL, INS and USBL systems, including Fusion 2, Ranger 2 and Marksman


Compatt 6+ is used for high precision survey and construction operations in all water depths, including: spoolpiece metrology, pipeline touchdown monitoring, structure installation and dynamic positioning reference.

Compatt 6+ offers significant time saving with fast update rates (up to 1 Hz LBL tracking), all made possible using the Wideband 3 acoustic telemetry protocols. Support of Wideband 2 ranges maintains backwards compatibility. This makes any system operating with Compatt 6+ significantly easier to operate therefore de-risking operations, reducing vessel time and reducing training requirements for offshore personnel.

Our Wideband advanced signal processing offers improved acoustic performance in challenging conditions, longer ranges, improved multipath rejection around structures and real-time range diagnostics for quality control. Wideband also reduces the interference to and from adjacent Sonardyne and other acoustic positioning systems.

The integrated communications and navigation technology allows the transponder to be used as a multi-purpose modem, autonomous data logger and navigation reference transponder

Technical information

See datasheet for more information
