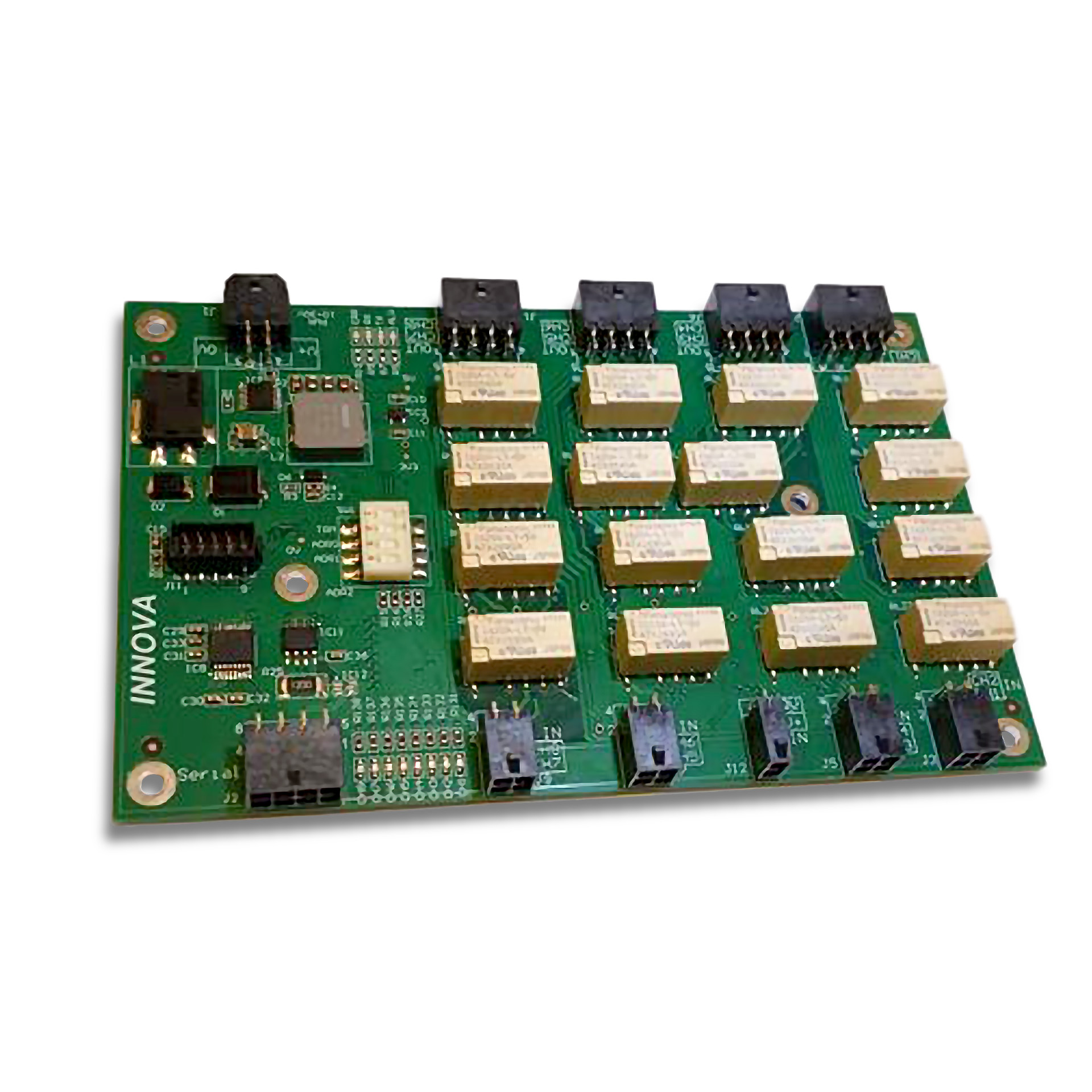

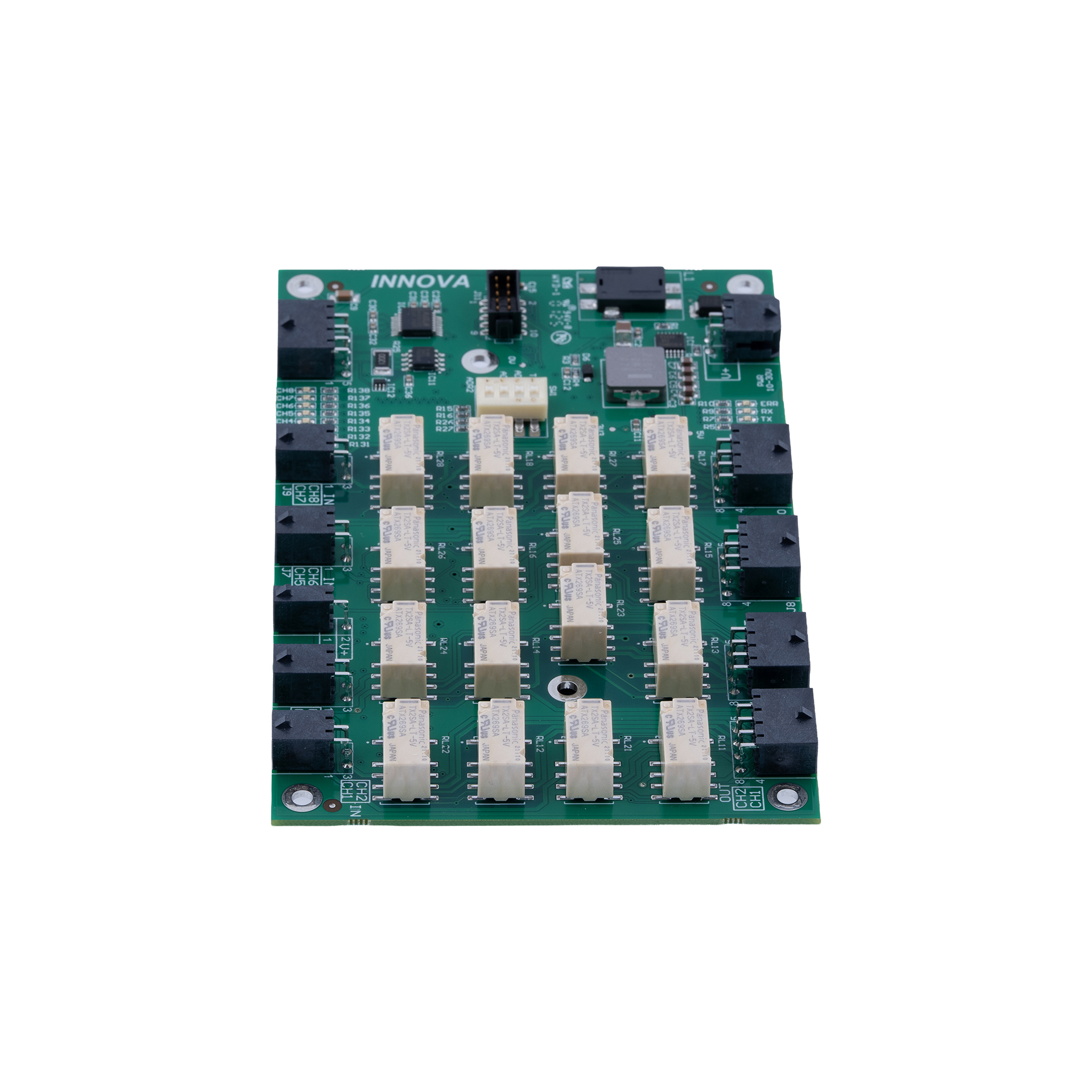

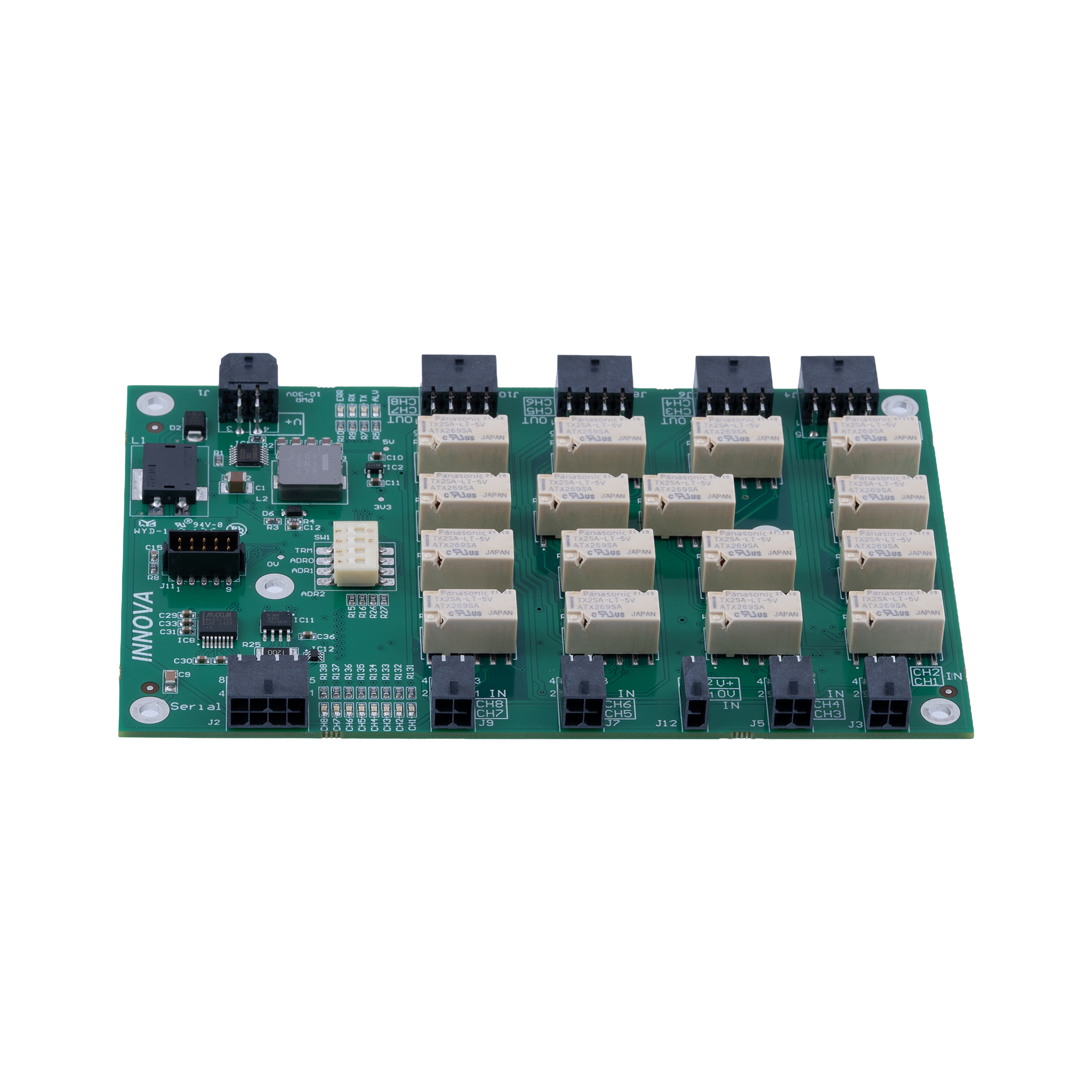

Signal Isolation Module – 8 Ch V1
The Innova Signal Isolation Module – 8 Ch V1 provides the possibility to galvanically isolate signals and power outputs without affecting the signal integrity. It is designed to operate in pressurized environments to 4000 msw.
Description
The Innova Signal Isolation Module – 8 Ch provides the possibility to galvanically isolate signals and power outputs without affecting the signal integrity. It is designed to operate in pressurized environments to 4000 msw.
The main function is to provide a larger system the functionality to galvanically isolate channels individually and effectively. The design allows the unit to be installed in pressurized environment in oil filled enclosures.
The board enhances fault-finding capabilities during subsea operations with this unique I/O channel isolation feature. This invaluable functionality allows users to swiftly identify and address ground faults in external I/O units, ensuring seamless maintenance and optimal system performance.
The module is designed for use in new systems or as a retrofit on existing systems using PIO36. Its footprint and interface are identical to PIO36.
Key features
- 8x Isolated channels
- Short circuit detection
- Input protection
- Load voltage range 12 to 24 VDC
Remote control is possible via Modbus RTU (RS485 or RS232).
Several units can be controlled over a single RS485 network by daisy chaining feature.
This version of the board offers reduced wiring by sharing input power for both relay channels and onboard electronics.
Technical information
See datasheet for more information
