LINK™ – Extension Boards
Innova Link Extension boards Analogue Video and Serial Communication system.

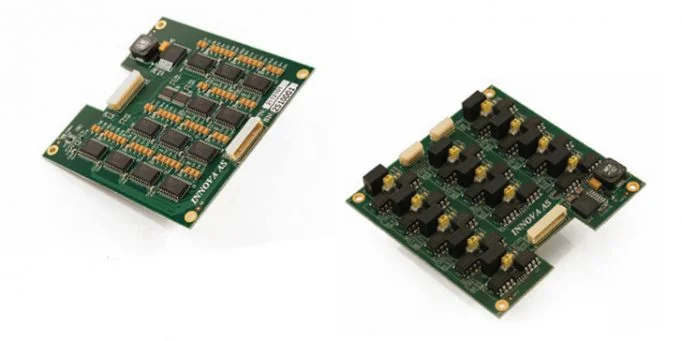

Description
A wide range of add-on boards with video and serial interfaces are available for the Link AV system. The AV system is the core system in the Link product family, and provides video and serial lines over a single fibre, as well as diagnostics interface for the other products in the family.
The AV system is designed to be modular and flexible, by using a combination of motherboard and daughter boards to provide different signal interfaces. An AV board has 6 on board analogue video channels and extension connectors for up to 4 daughter boards with additional video and data channels.
Currently, daughter boards are available with:
• 2 additional channels of Analogue Video
• RS-232, 115 kbps 12 isolated channels
• RS-485 Half duplex, 115 kbps, 12 isolated channels
• 4 Tritech ArcNet channels
• RS-232, RS-485, trigger, 9 channels
In addition, custom extension boards can be developed.
The daughter boards can be combined so that they work as media converters; i.e. a topside RS232 board can communicate with a remote RS485-board, providing “on-the-fly” media conversion from RS232 to RS485.
The design is based on Innova’s long experience with remotely operated vehicle systems and provides a wide range of features, including;
• All serial channels are galvanic isolated
• All video channels are fully AC coupled
• Pressure tolerant electronics
Technical information
Extension Board 2 ch Video
• Sampling at 12.5 MHz, BW 6MHz
• Connectors: Input and Output board: Radial MCX
• Latency < 20µS
• Typical idle power consumption: 25mA @ 12V
Part no
• 21 11 101 Ext 2 ch Input, Standard
• 21 11 201 Ext 2 ch Input, PC 300 Bar
• 21 11 301 Ext 2 ch Output
Extension Board 12 ch RS-232
• 12ch of RS-232, 115kbs, Isolated
• Typical idle power consumption: 550 mA @ 12V
• Connectors: Input board: 2x40pin Molex
Output board: RJ45
Part no
• 21 12 101 Ext 12 ch RS-232 Input
• 21 12 201 Ext 12 ch RS-232 Input, PC 300 Bar
• 21 12 301 Ext 12 ch RS-232 Output
Extension Board 12 ch RS-485 Half Duplex
• 12ch of RS-485, half duplex, 115kbps, Isolated
• Typical idle power consumption: 560 mA @ 12V
Maximum power consumption: 1130 mA @ 12V
• Connectors: Input board: 2x40pin Molex
Output board: RJ45
Part no
• 21 14 101 Ext 12 ch RS-485 HD Input, Standard
• 21 14 201 Ext 12 ch RS-485 HD Input, PC 300Bar
• 21 14 301 Ext 12 ch RS-484 HD Output
Input Boards
• Board size: 100mm x 100mm
• Voltage: 12 v
• Operating temperature range: -20–70 °C
Output Boards
• Board size: 100mm x 160mm
• Voltage: 12 v
• Operating temperature range: -20–70 °C
Extension Board 4 ch Tritech ArcNet
• 4 bi-directional Tritech ArcNet serial channels
• Typical idle power consumption 10 mA @ 12V
• Connector: Phoenix MC 0,5/8-ST-2,5
Part no
• 21 12 101 Ext 12 ch RS-232 Input
• 21 12 201 Ext 12 ch RS-232 Input, PC 300 Bar
• 21 12 301 Ext 12 ch RS-232 Output

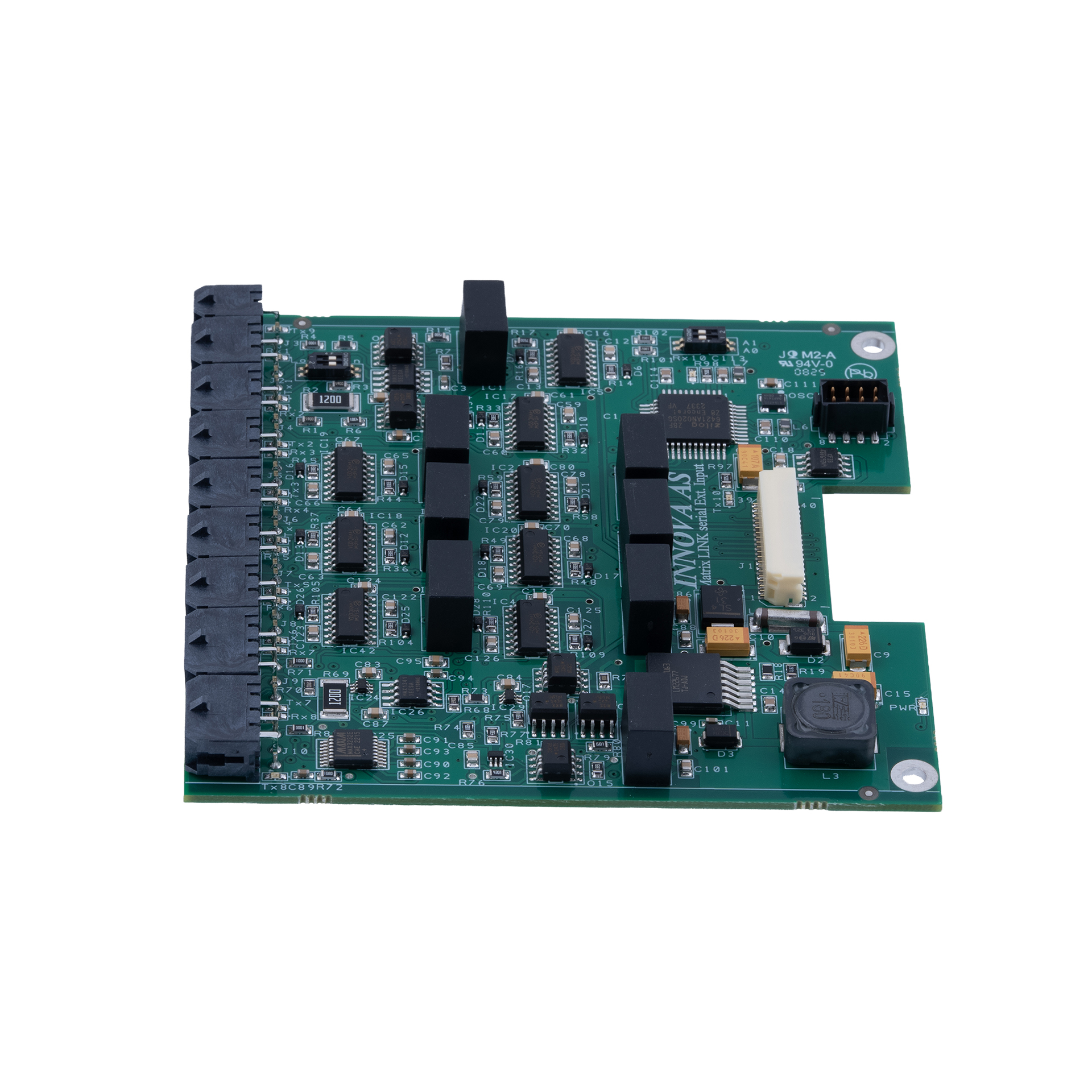

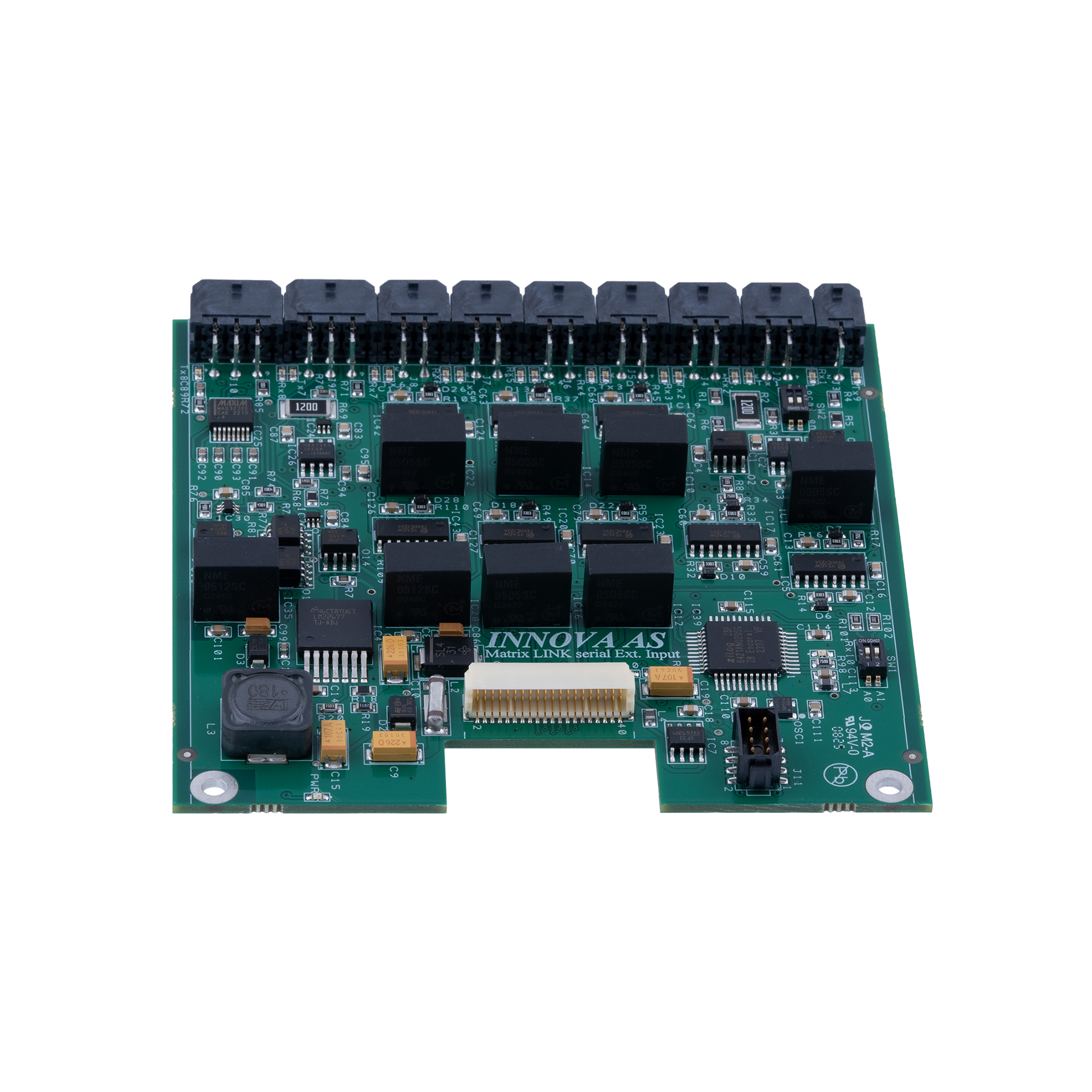

Extension Board 9 ch RS-232, RS-485, Trigger
• Power supply: 12VDC (for on-board electronics)
• Typical idle power consumption: 450mA @ 12V
• 5 isolated RS-232
• 2 isolated RS-485 (selectable via control SW)
• 1 isolated trigger (input on Output board and
output on Input board)
• 1 RS-485 communication port to a host system
• Connectors
Input board:
RS-485 control, J2 Molex 43025-0400 conn.
Trigger output, J3 Molex 43025-0200 conn.
RS-232, J4-J8 Molex 43025-0400 conn.
Output board:
RJ45
RS-232 / RS-485, J9, J10 Molex 43035-0600 conn.
Part no
• 21 16 101 Ext 9 ch Input, Standard
• 21 16 201 Ext 9 ch Input, PC 300 Bar
• 21 16 301 Ext 9 ch Output
