PT ETH Switch

The Innova Pressure Tolerant Ethernet Switch provides extended possibilities of connecting more sensors/external equipment (i.e. IP camera, sonar) to valve packs and other systems.

Description

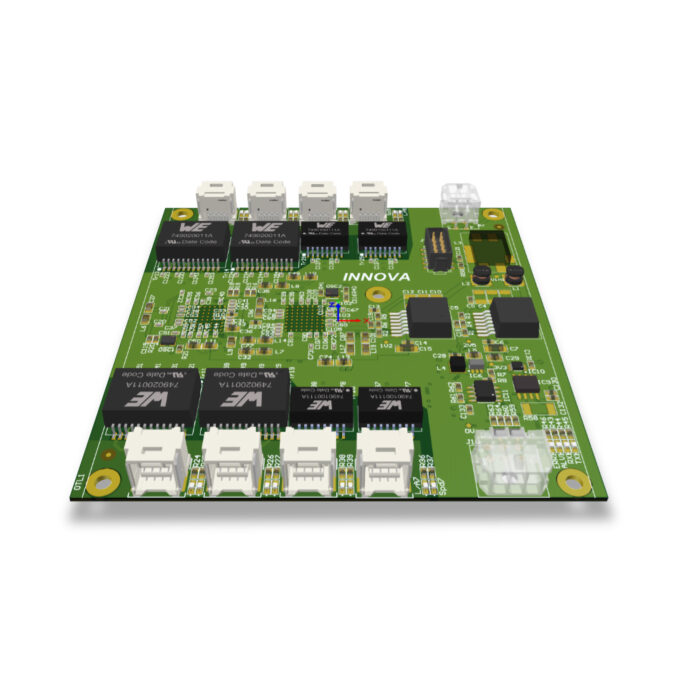

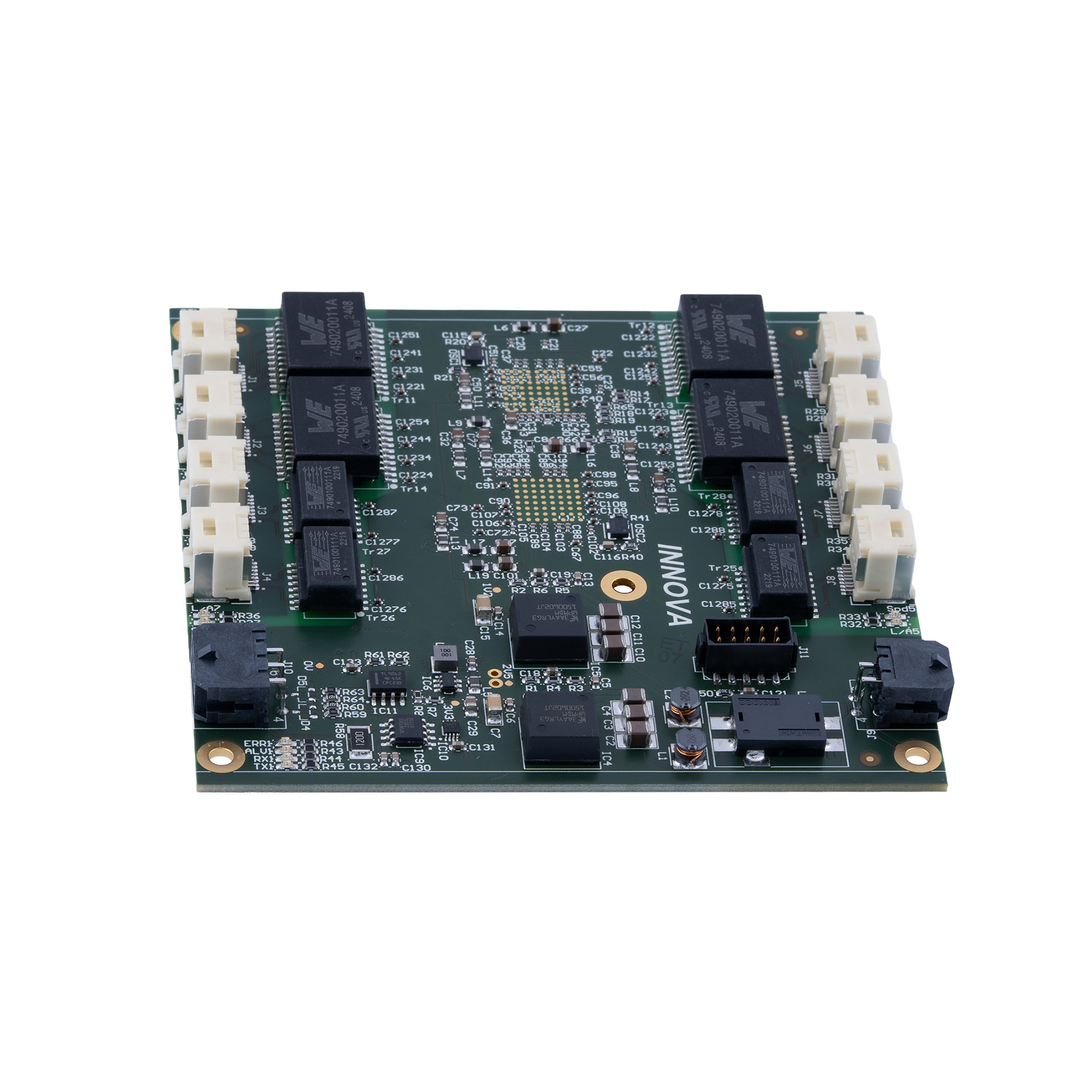

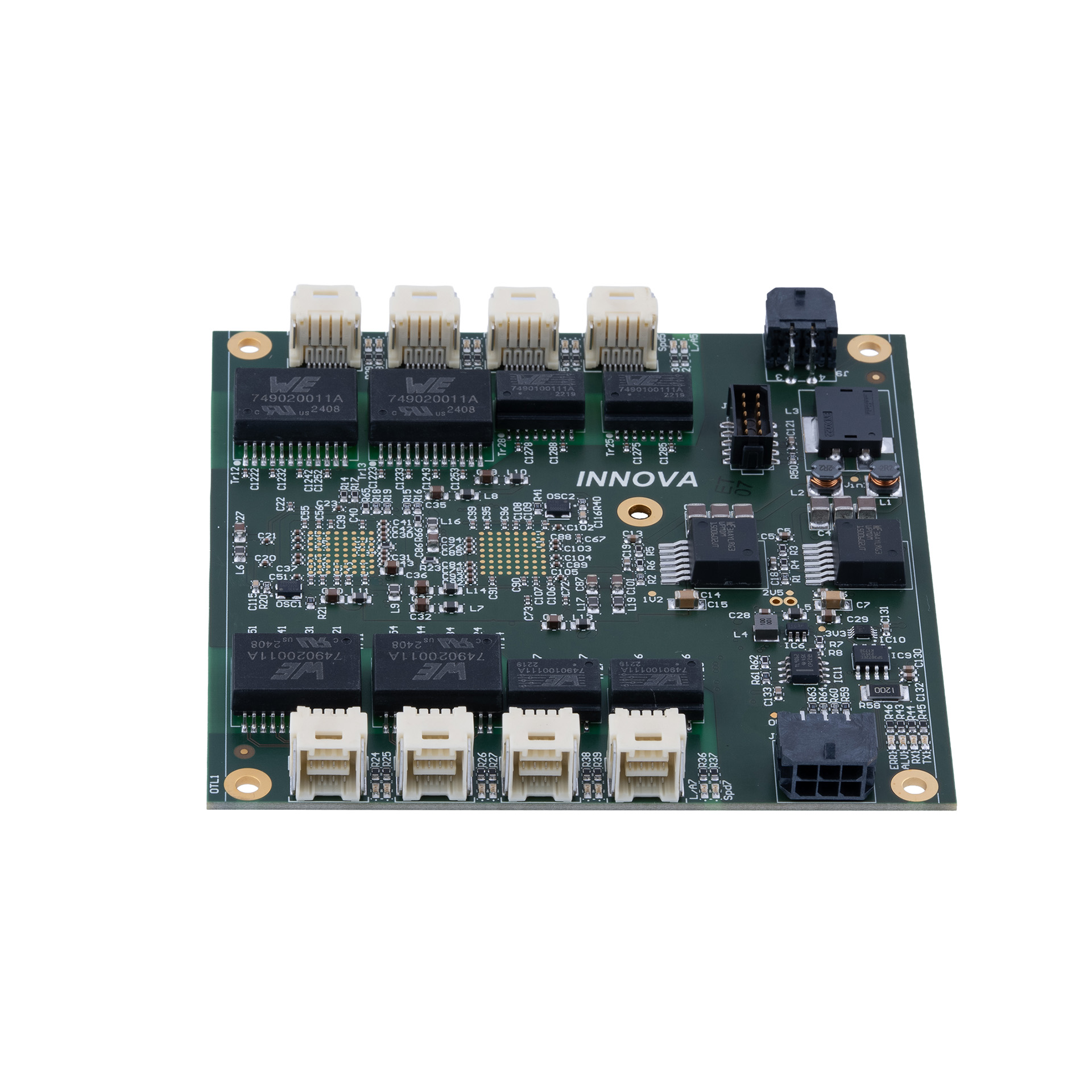

It handles up to 1 Gbps and designed to operate in pressurized environments to 4000 msw. The new circuit board will work well together with other Innova’s product, such as SIM – 8 Ch and PIO36.

Key features

  • Pressure tolerant
  • 8 Ethernet ports (4 ports locked to 10/100 Mbps)
  • Rapid spanning tree protocol (RSTP)
  • Multiple spanning tree protocol (MSTP)
  • Daisy chain
  • Management: Possible extended features TBA.

Datasheet

Innova-Datasheet-PT ETH Switch
