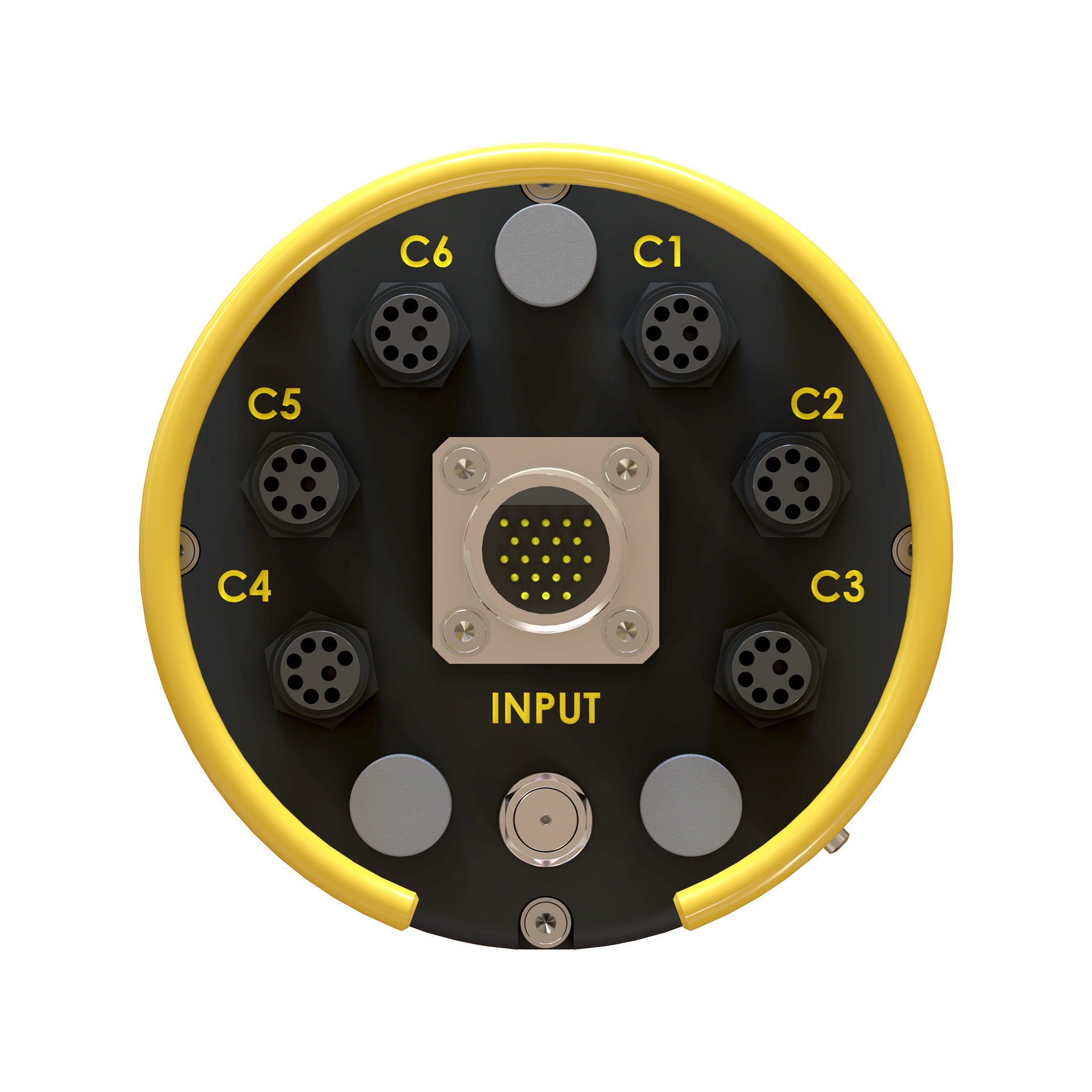

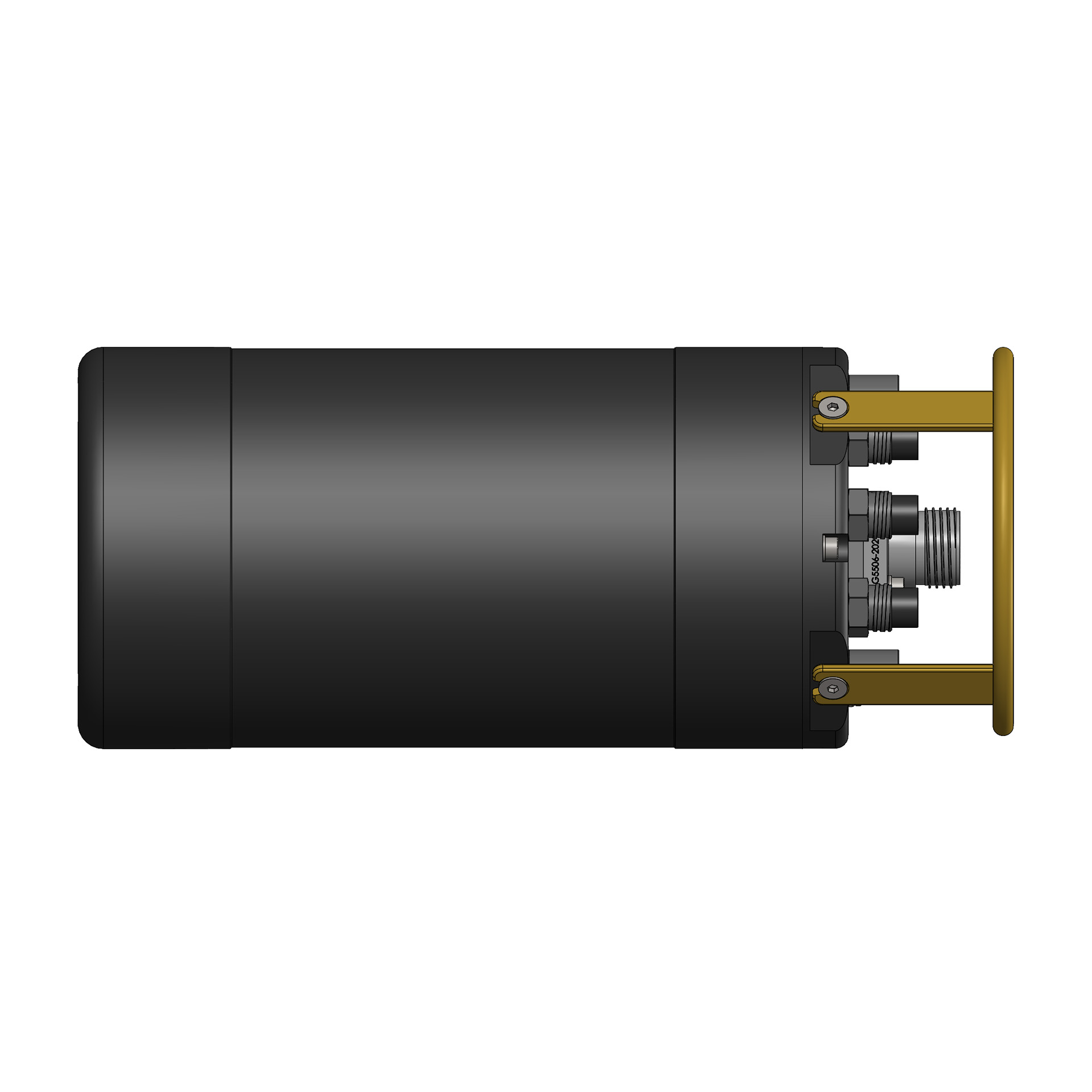

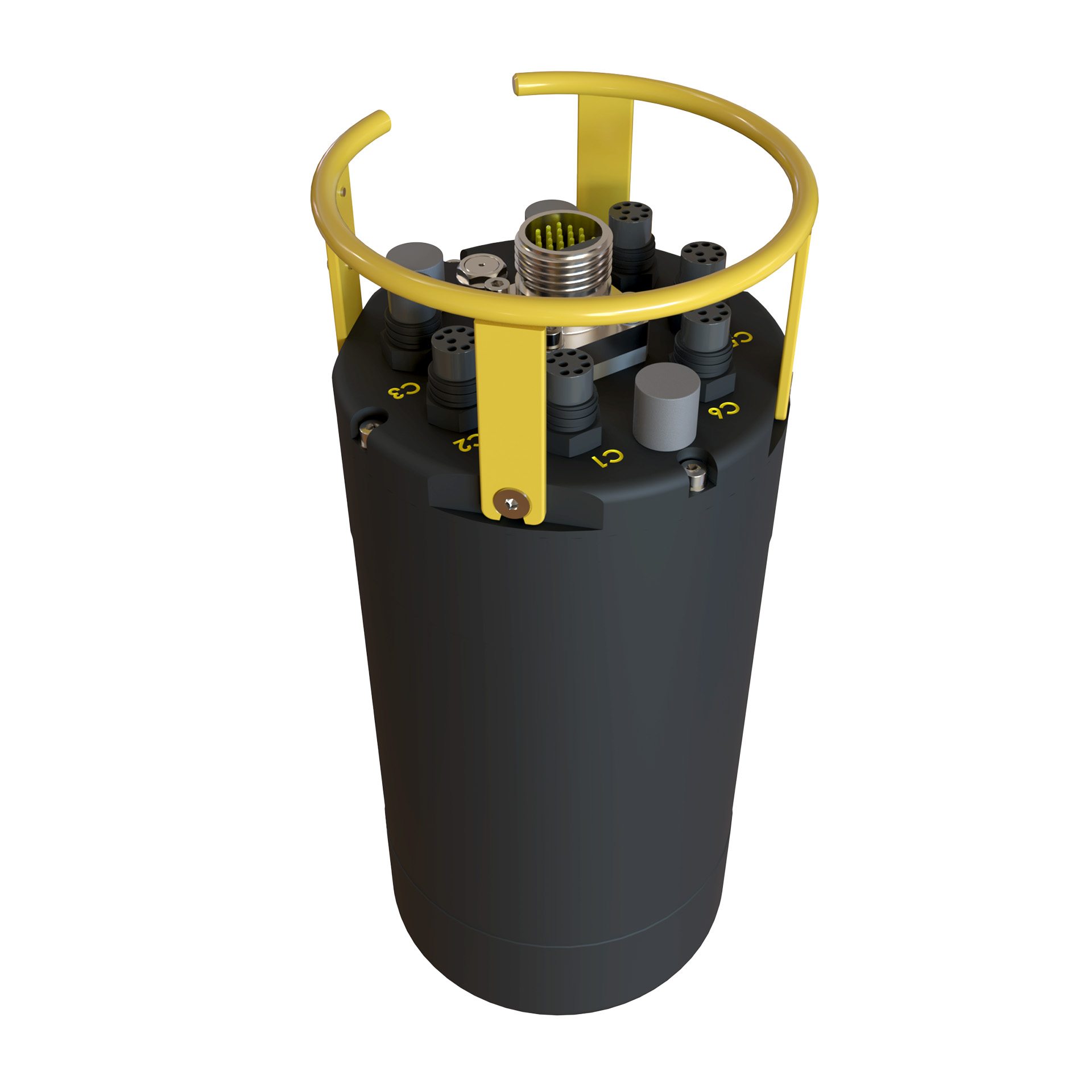

Ethernet Expansion Canister for MATRIX™

Ethernet expansion combines an ethernet switch and power management into a small, compact design based on the new Micro Matrix™ canister.

Description

Made to be compatible with all existing Matrix™ products. The Ethernet expansion will let you switch one of the 1 Gbps interfaces on a Matrix into six dedicated 100 Mbps Ethernet interfaces. Each channel will have 24 VDC with typically 1 A for powering equipment.

Key features

  • 6 x 100 Mbps Ethernet
  • 6 x 24 VDC (1 A Typ /2 A Max) outputs
  • Small form-factor multiplexer
  • Rugged design for harsh environments
  • Remote firmware upgrade
  • Depth rating down to 3000 m

Datasheet

Innova-DataSheet-Ethernet Expansion for MATRIX
