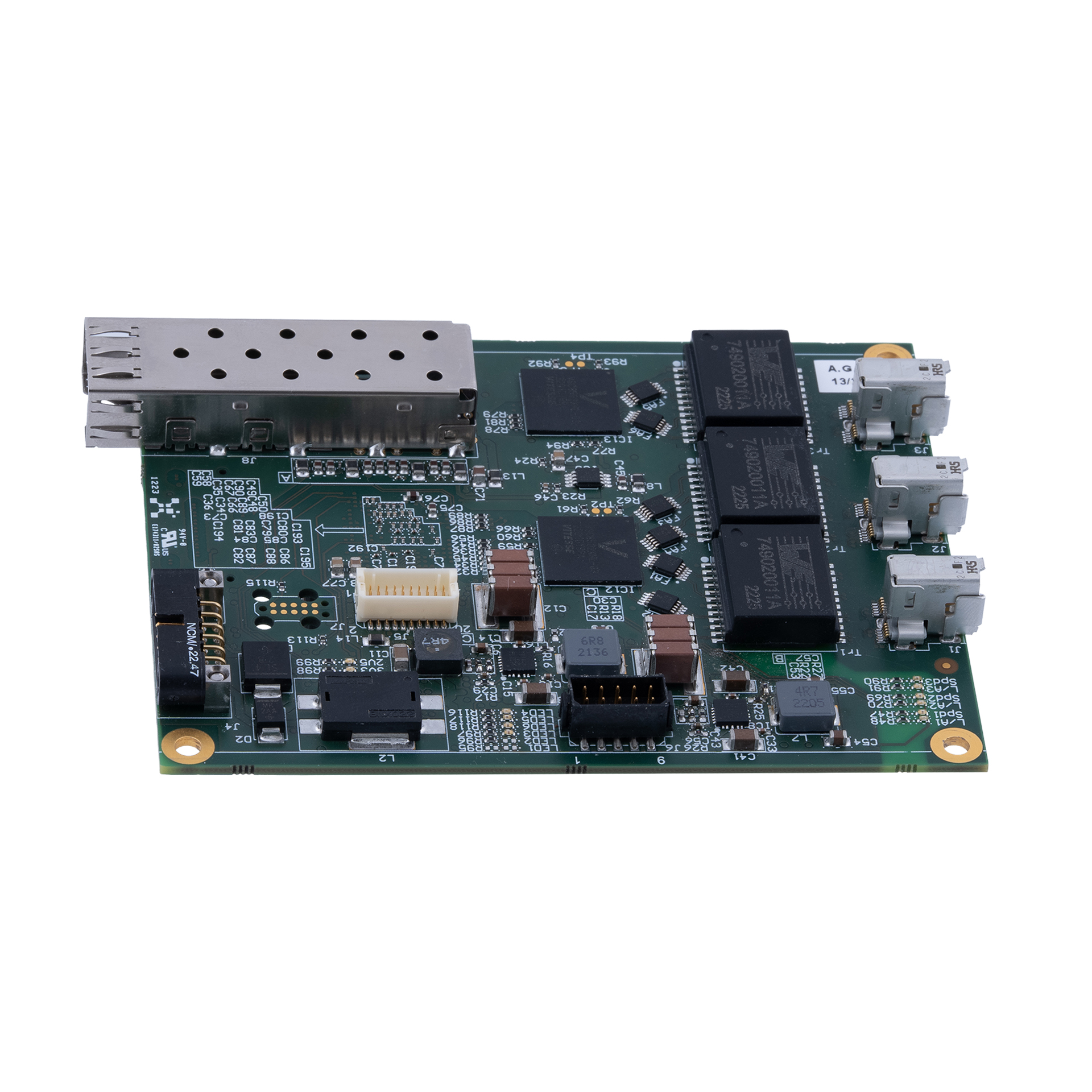

LINK™ Ethernet 3 Ch MUX Input/Output

The Innova Link Ethernet media converter is a flexible solution for integration of multiple high-speed Ethernet devices to any remotely operated system.

Description

See datasheet for more information

Technical information

Communication

  • Fibre-optic speed 5 Gbps 3x Ethernet channels (10/100/1000 Mbps) 1 Gbit pr. channel SW configurable Ethernet speed
  • 8x Serial channels logic level (3.3 VDC) Baud rates up to 115 200 bits/s (e.g. RS232, RS485)
  • Diagnostics (compatible with existing LINK boards diagnostic, but not with AV board diagnostic)

Physical Dimention

  • Board size: 100 mm x 80 mm

Connector Type & Electrical Data

  • One SFP cage SFP+ / BiDi SFP+
  • Power connector: Nicomatic 12 pin
  • Ethernet connector: IX Industrial
  • Serial connector: Hirose HRS_DF20F-10DP-1V
  • Input voltage: 10 – 30 VDC
  • Idle power draw (typ.): 500 mA @ 12 VDC
  • Operating temp. range: -20 °C to 70 °C

*SFP temp. range may be different

Datasheet

Innova-DataSheet-LINK ethernet 3ch Mux
