Scorpion Oceanics connectors – 55 Series

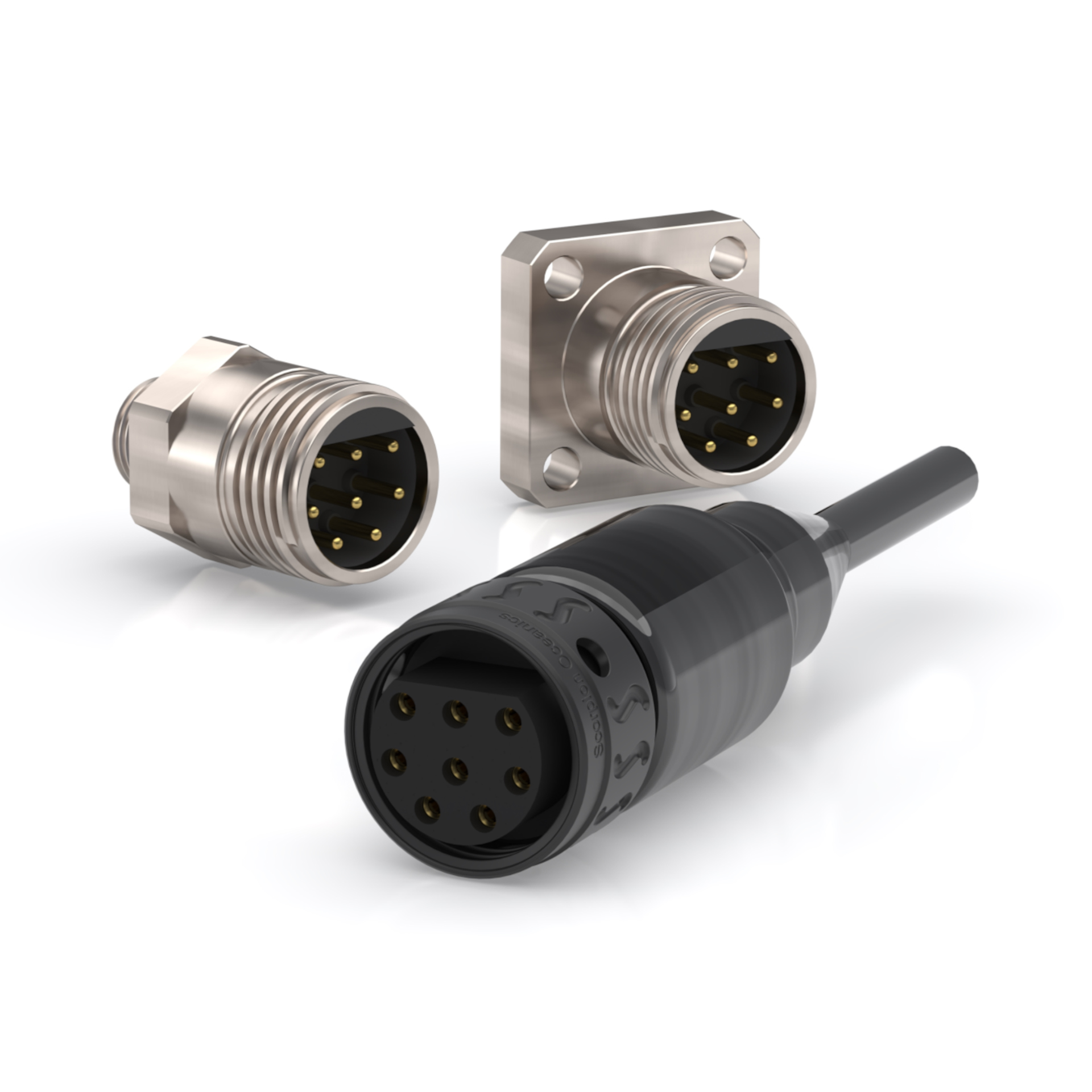

The Scorpion “55 Series” is a dry mate electrical connector for harsh environment and subsea applications.
- Description
- Part numbering System
- Connector dimensions – Attachable
- Connector dimensions – Mounted Receptacles
Description
Building on this “industry standard” the Scorpion “55 Series” introduces new features and levels of performance whilst maintaining full compatibility within the “55” platform.
SPECIFICATIONS:
Shell Sizes: 4
Contacts: 2 to 21
Voltage Rating: Up to 440 Vac / 600 Vdc 3k Vdc
Current Rating: Up to 10 to 50 Amps 70 Amps
Ethernet Speed: Up to Gigabit 1508, 2008, 2013, & 2021
Planforms Pressure Rating: Up to 10,000 psi / 690 Bar
Temp Rating: -20°C to 90°C Mating Cycles: >500
MATERIALS
Connector Shell: Passivated 316L S/Stl as standard. Also available in Titanium, Inconel, Monel & Aluminium.
Coupling Nut: Fluoro Polymer Coated 316L S/Stl as standard. Also available in Titanium, Inconel, Monel & Aluminium.
Contacts: Copper Zinc Alloy with Gold over Nickel Plating.
Insulator: Polychloroprene.

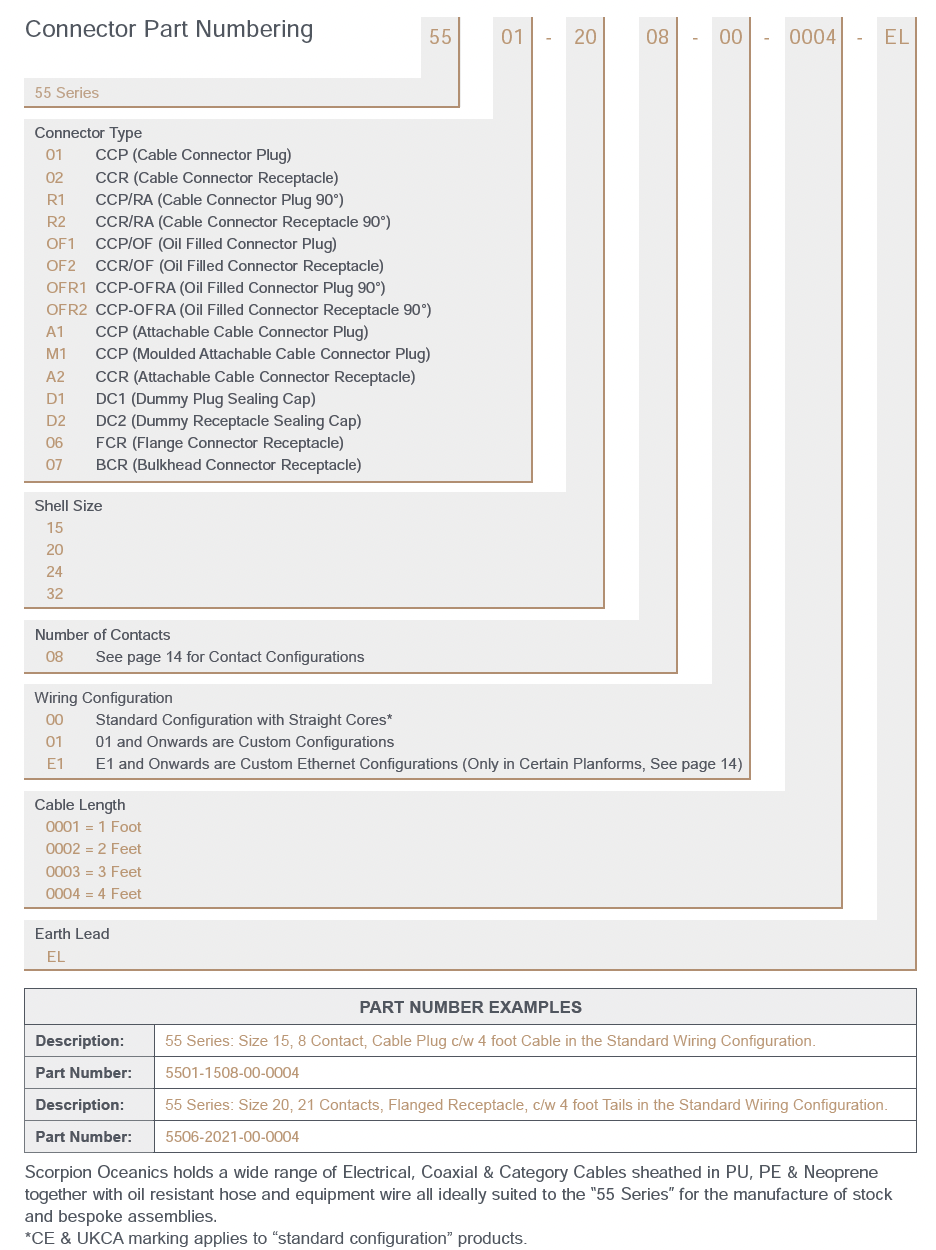

Part numbering System
Connector dimensions – Attachable

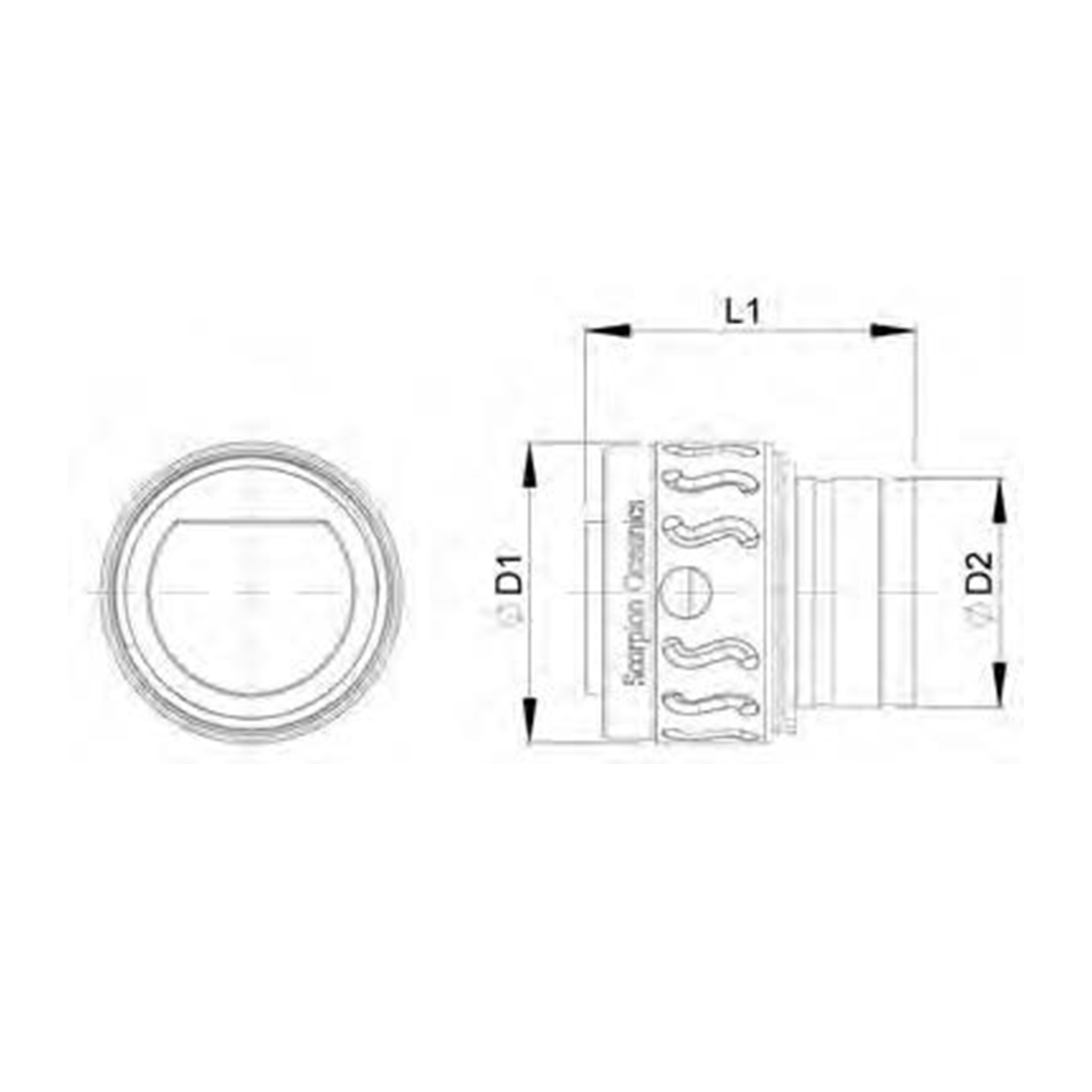

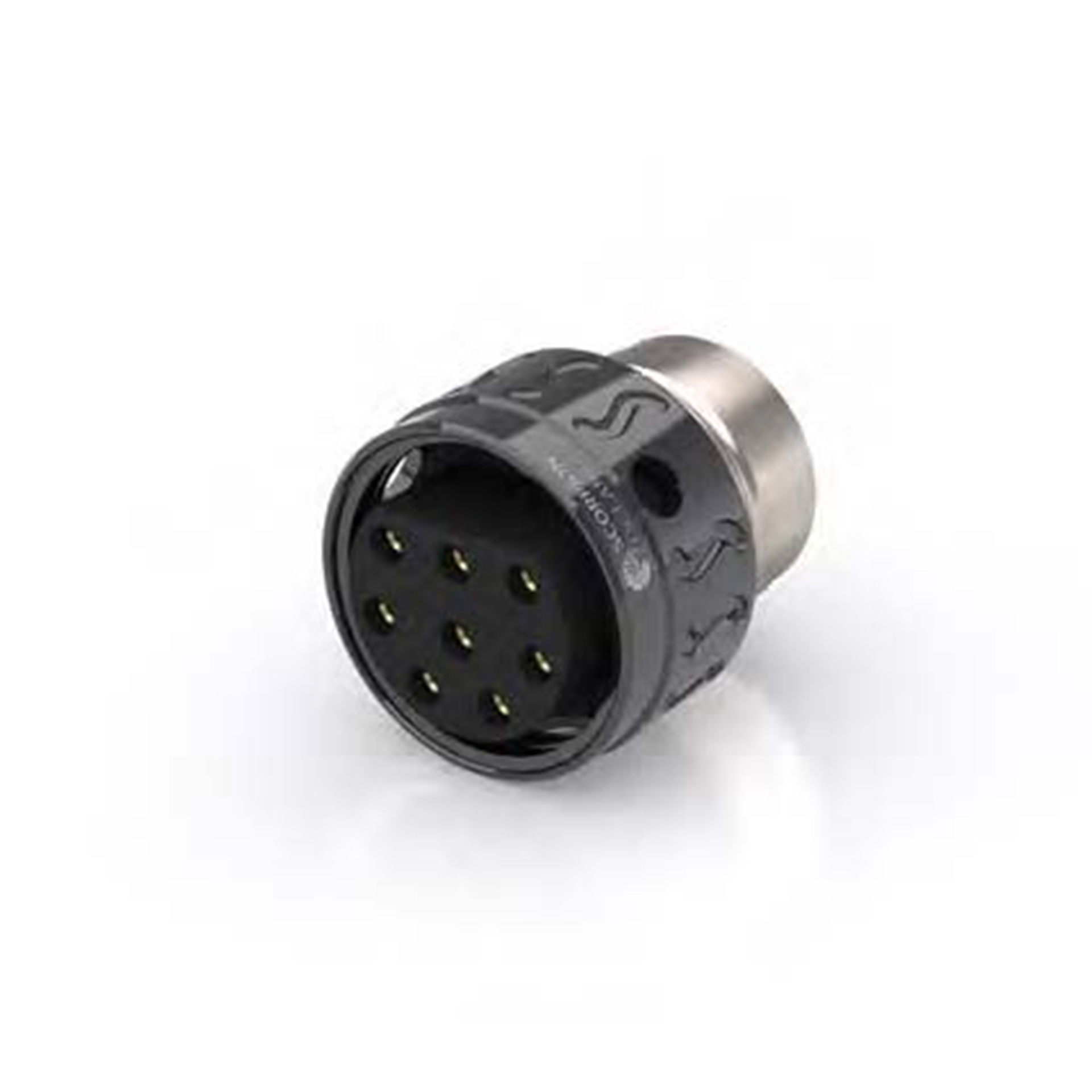

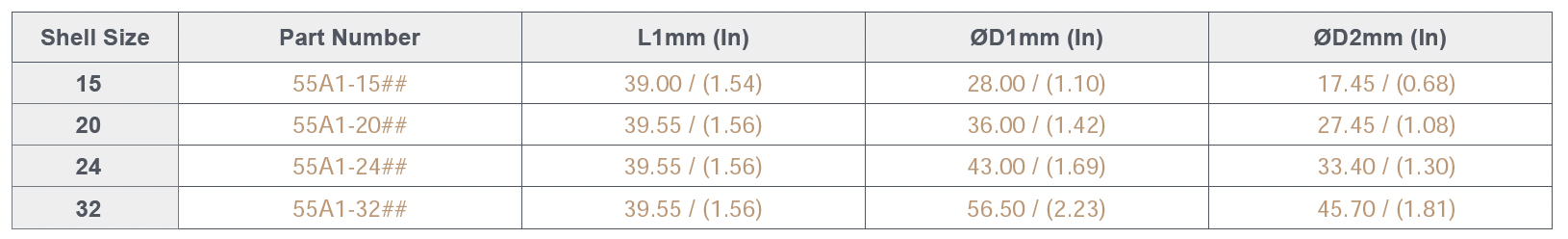

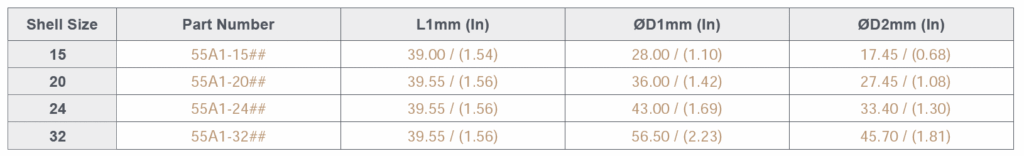

55A1 – CCP / 55M1 – CCP
(Attachable and Moulded Attachable Cable Connector Plug)
55A1 – CCP has solder contacts in the rear of the CCP.
55M1- CCP has a socket and pin arrangement in the rear of the CCP to allow for easier onsite termination.
Connector dimensions – Mounted Receptacles

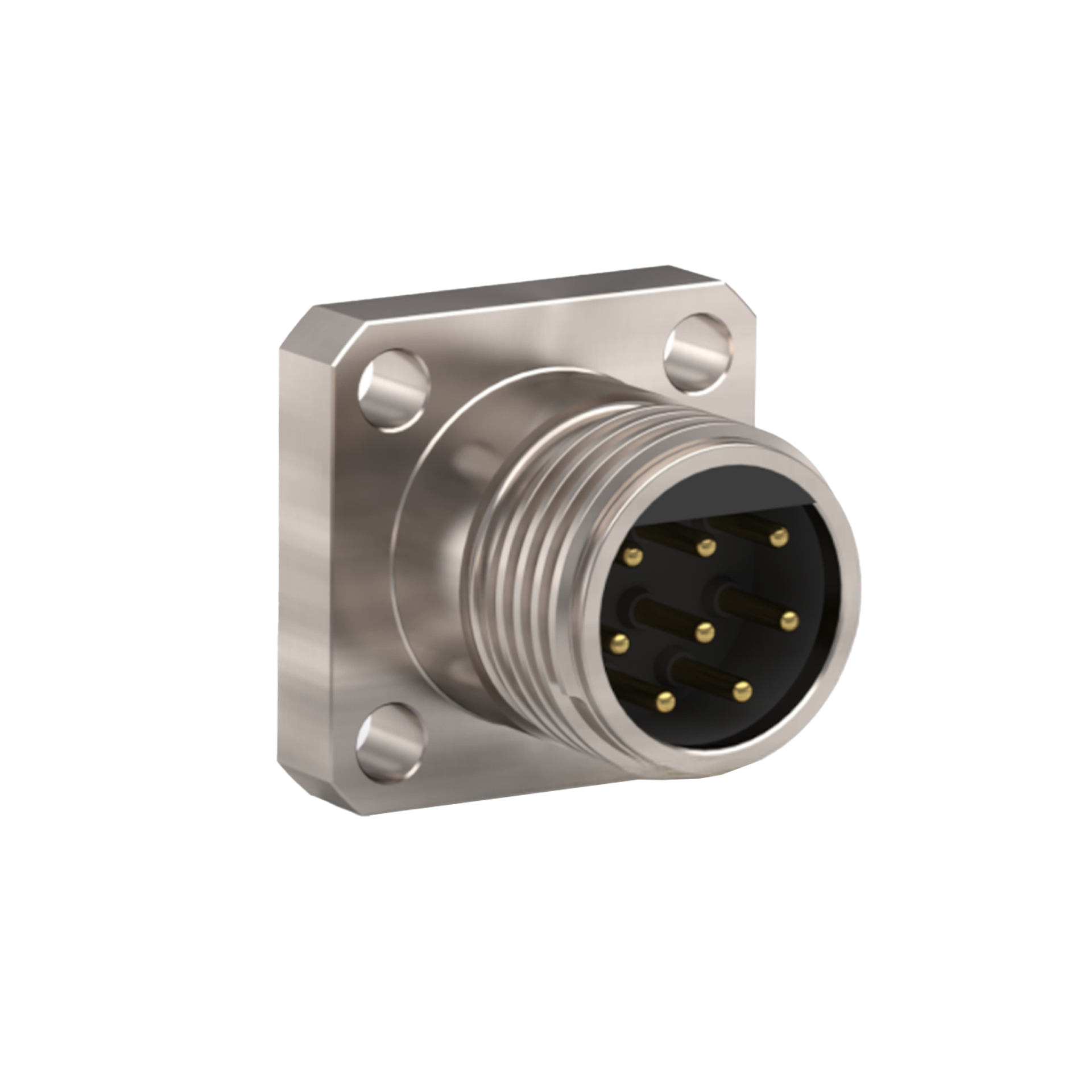

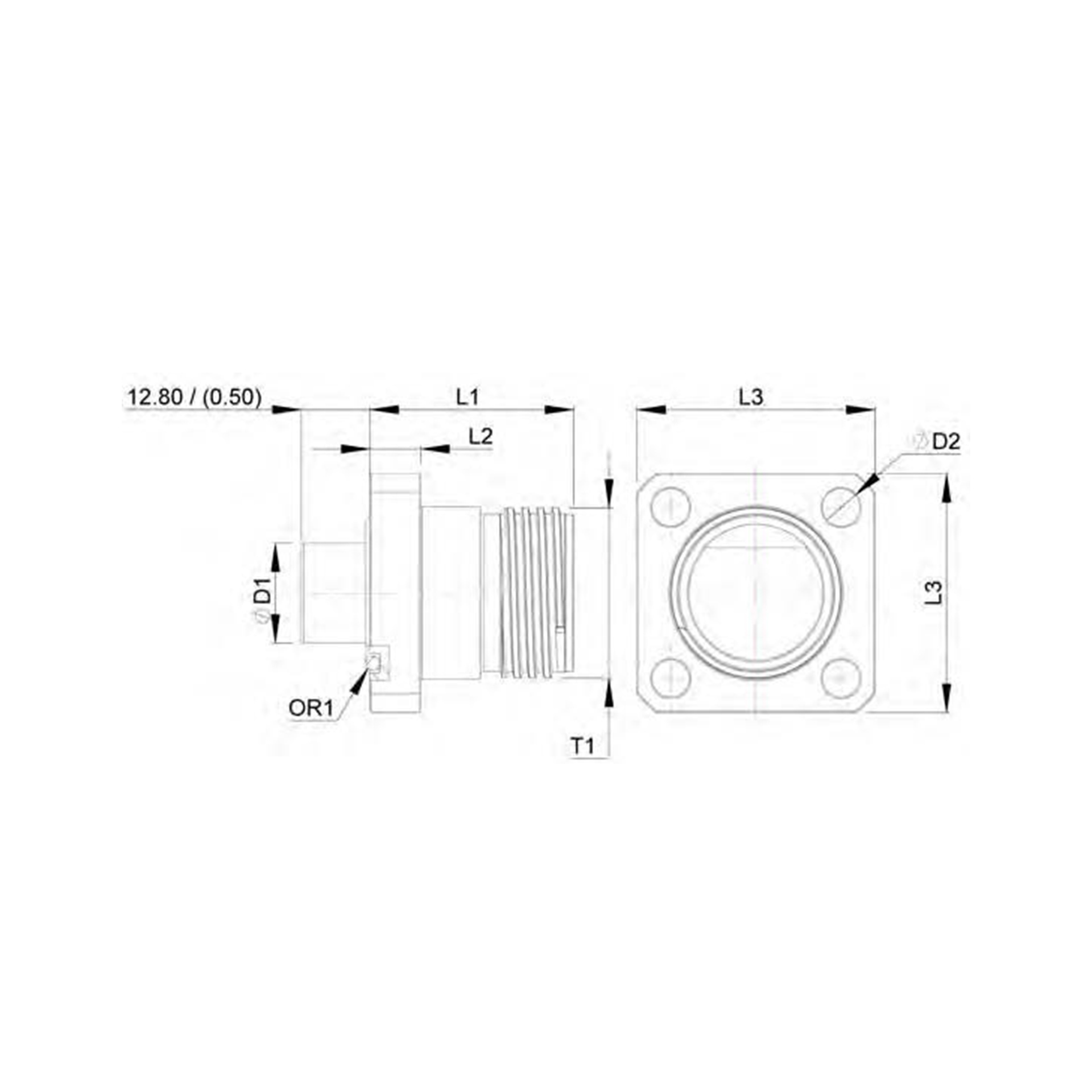

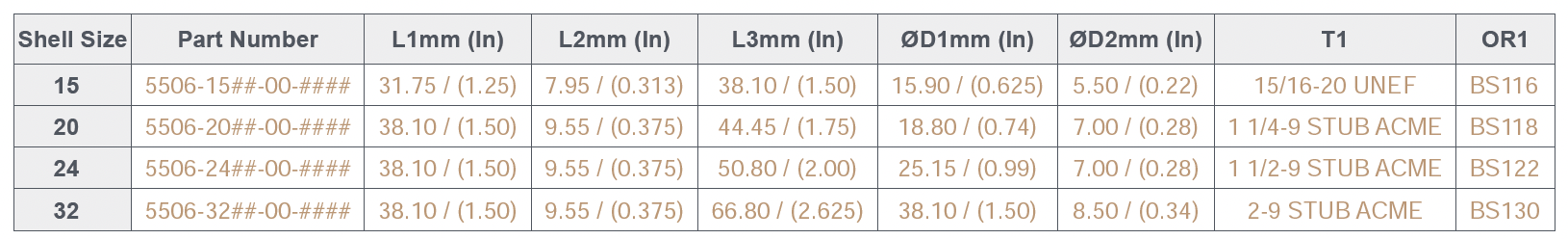

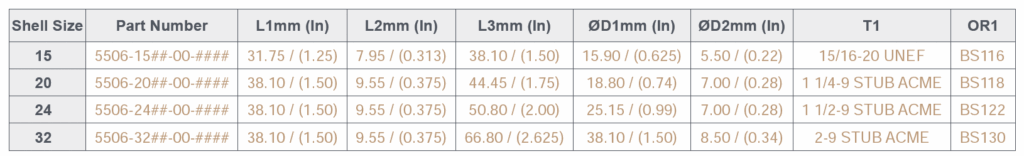

5506 – FCR
(Flanged Connector Receptacle)

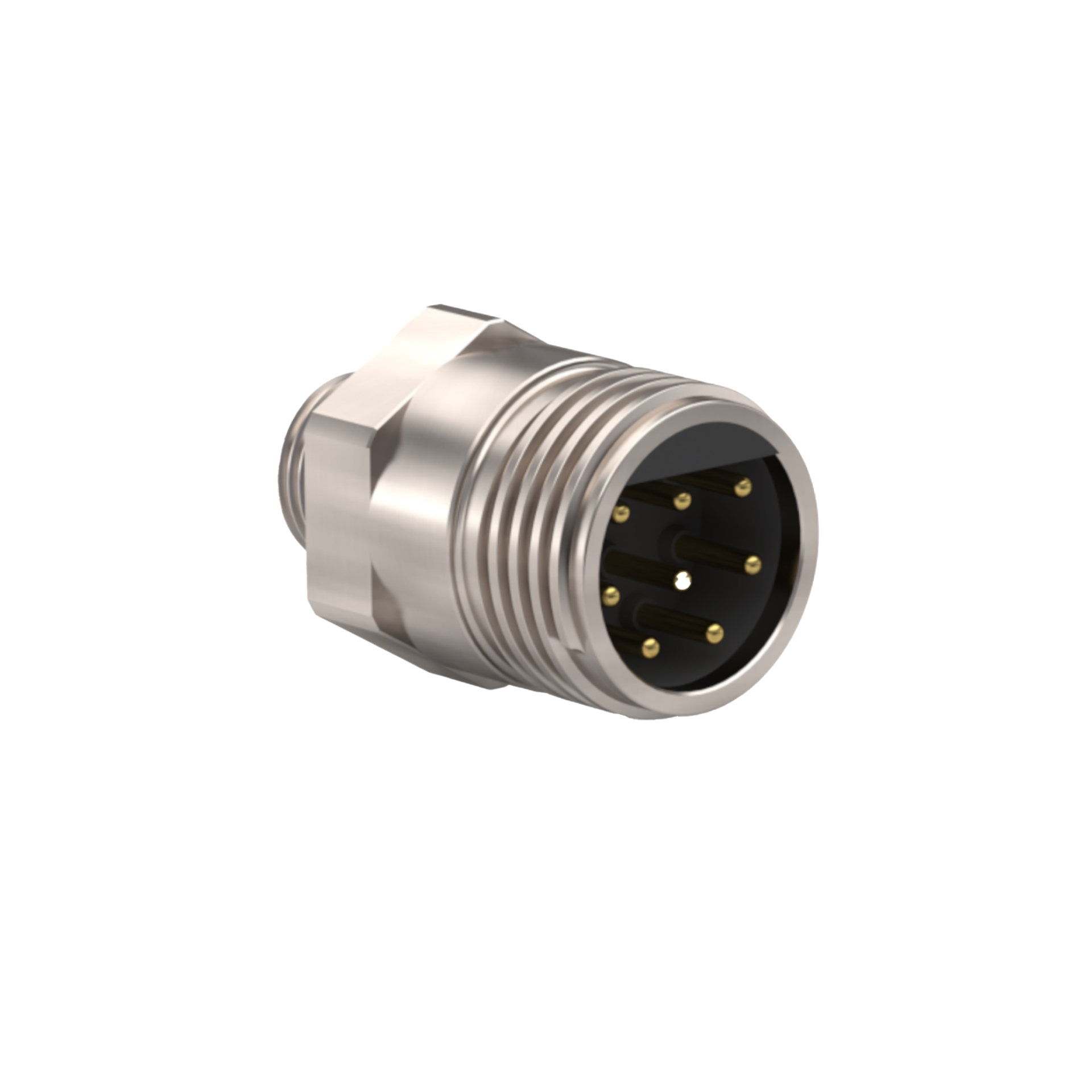

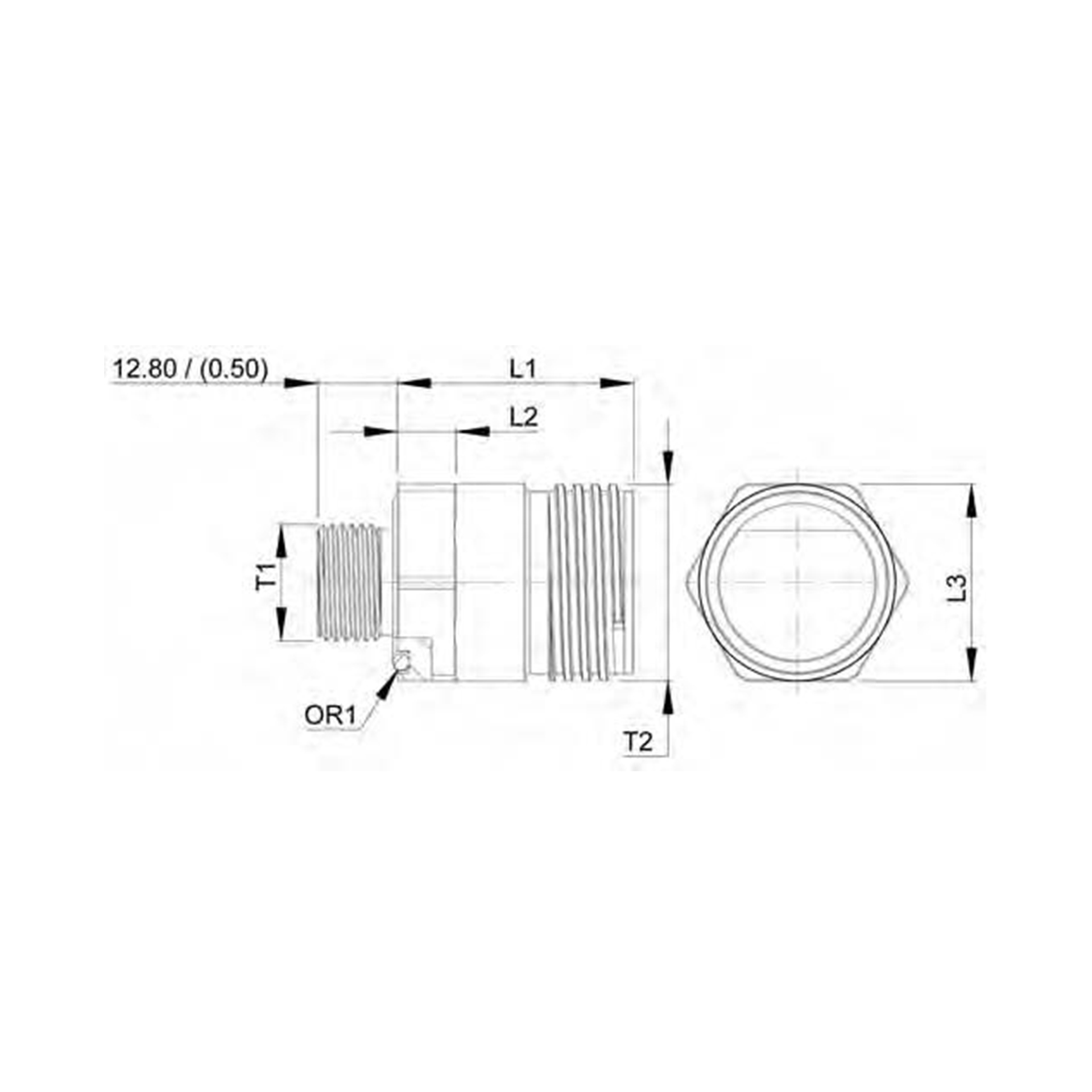

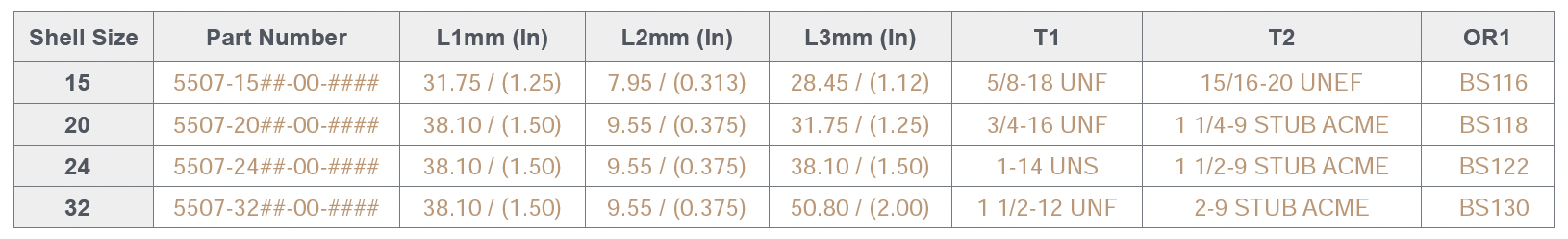

5507 – BCR
(Bulkhead Connector Receptacle)
