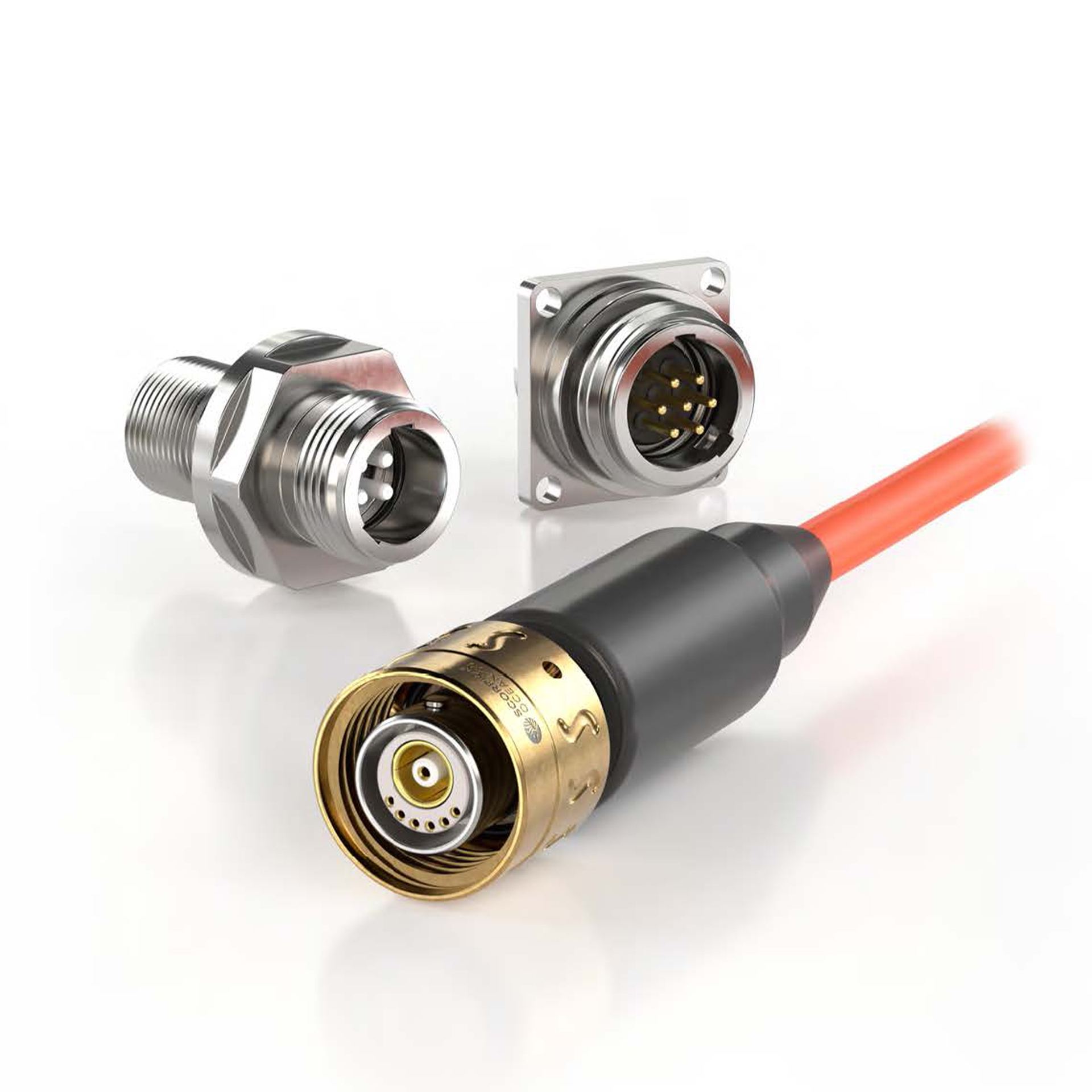

Scorpion Oceanics connectors – 400 Series
The 400 Series are high performance, high density, electrical and optical dry-mate connectors for deep submergence applications.
Description
With high contact density in a compact package, the ‘420 Series’ incorporates a metal shell as the primary pressure barrier with two O-ring seals protecting the mated contacts. The ‘455 Series’ connector combines the Dual sealing technology of the standard 400 series with the interface of the ‘550 series’ FCR. The ‘472 Series’ allows for bespoke interconnection requirements with the ability to choose between electrical and fibre optic contacts in each standard shell pair.

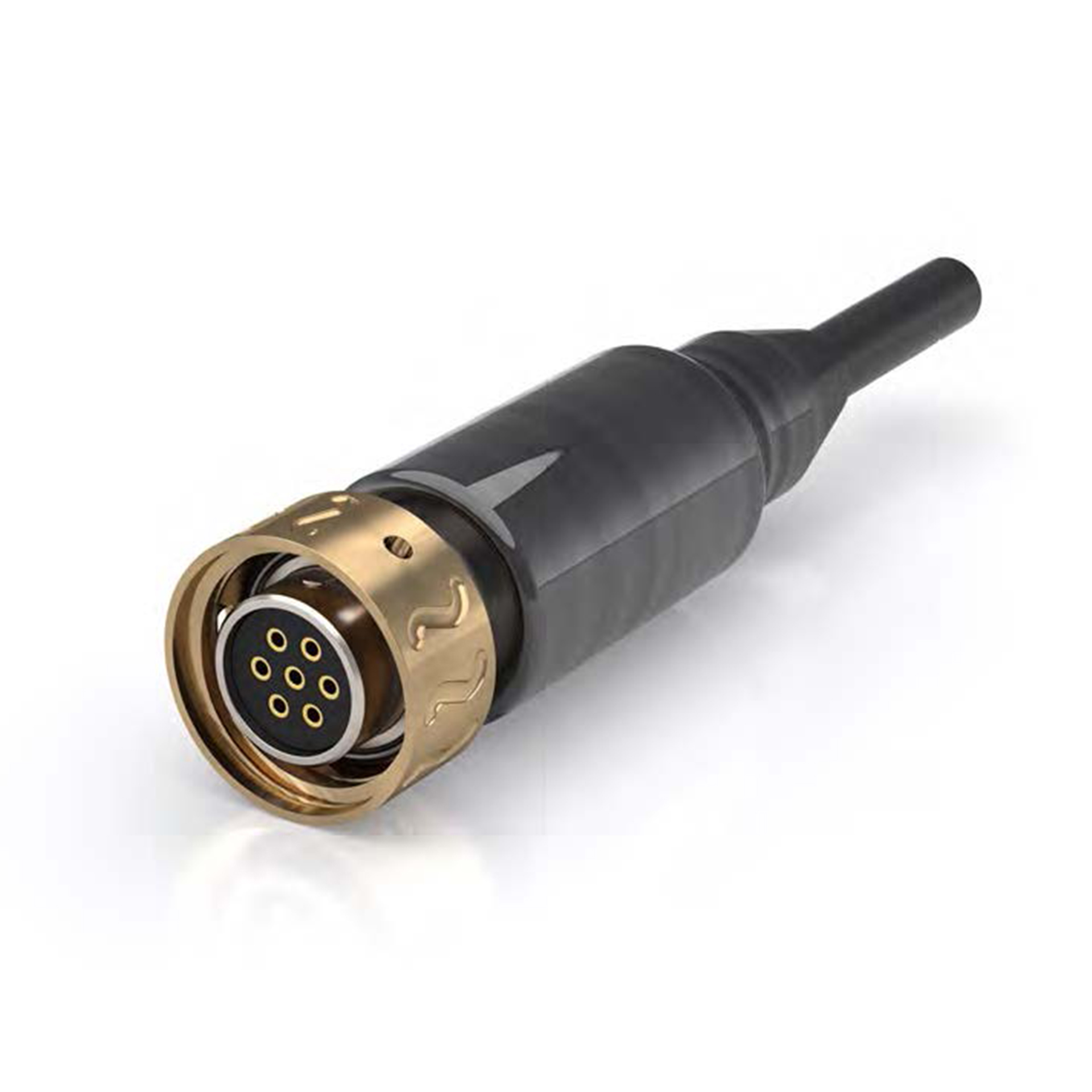

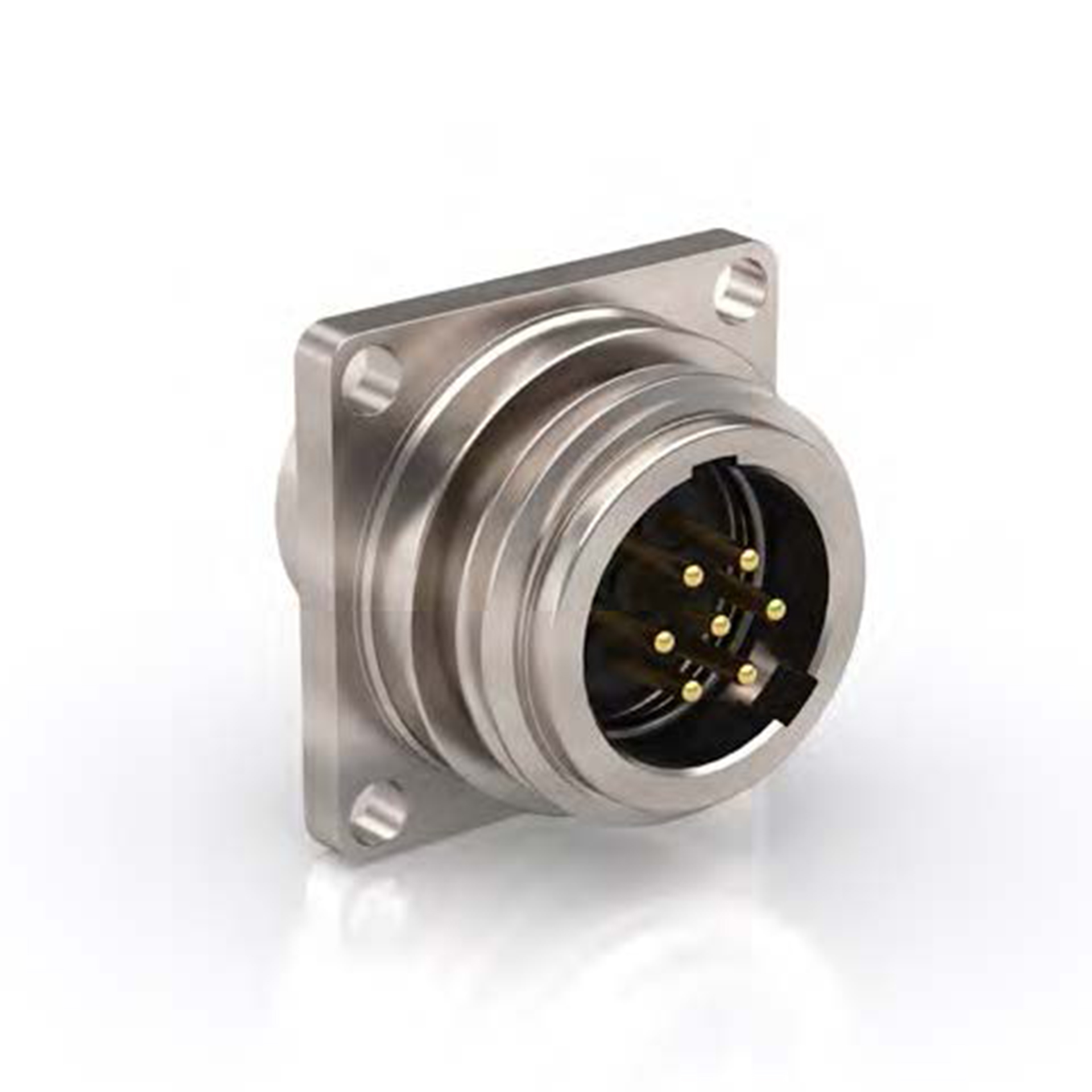

420 Series
With high contact density in a compact package, the ‘420 Series’ incorporates a metal shell as the primary pressure barrier with two O-ring seals protecting the mated contacts.
SPECIFICATIONS:
Shell Sizes: 6
Contacts: 3 to 76
Voltage Rating: Up to 600 Vdc / 415 Vac
Current Rating: Up to 23 Amps
Ethernet Speed: Gigabit Ethernet on Specified Plan Forms
Pressure Rating: (External) Up to 20,000 psi / 1380 Bar* (Open Face) Up to 3000 psi / 206 Bar
Temp Rating: -20°C to 70°C
Mating Cycles: >500
* Pressure rating subject to shell material and termination method, standard material rating 10,000 psi / 690 Bar.
MATERIALS
Connector Shell: 316L S/Stl as standard. Also available in Titanium, Super Duplex, PEEK, Inconel, Monel & Aluminium.
Coupling Nut: Nickel Ali Bronze as standard. Also available in Titanium, Super Duplex, PEEK, Inconel, Monel & Aluminium.
Contacts: Copper Zinc Alloy with Gold over Nickel Plating.

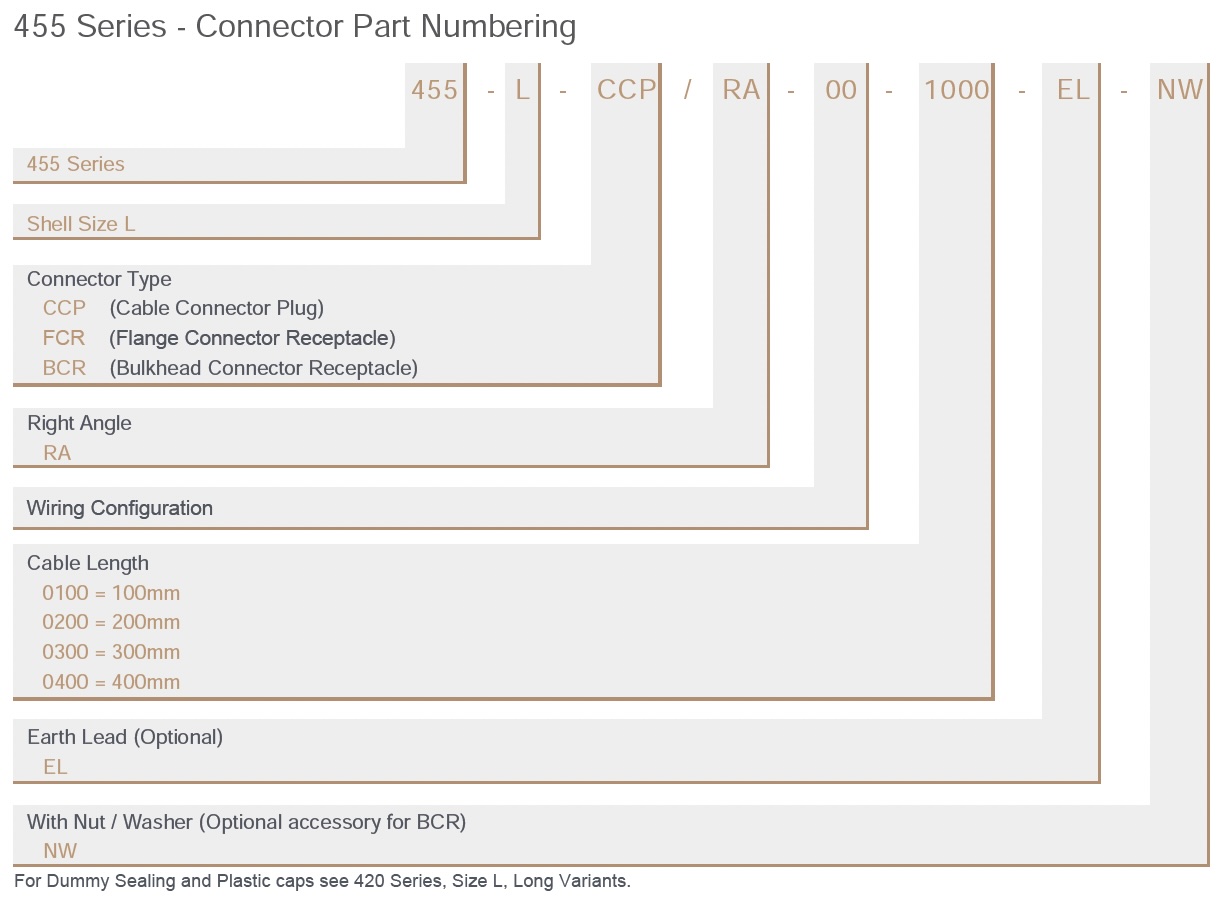

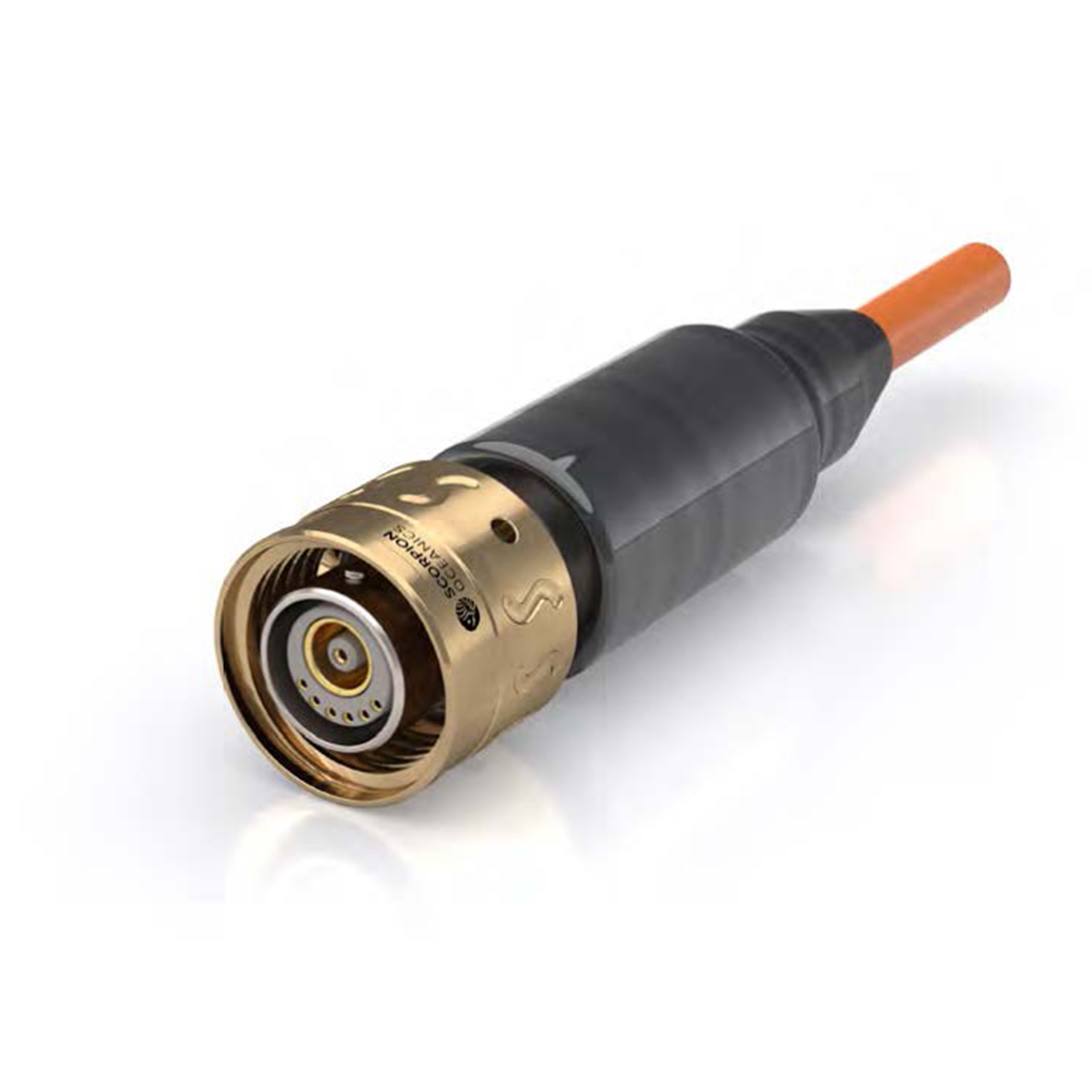

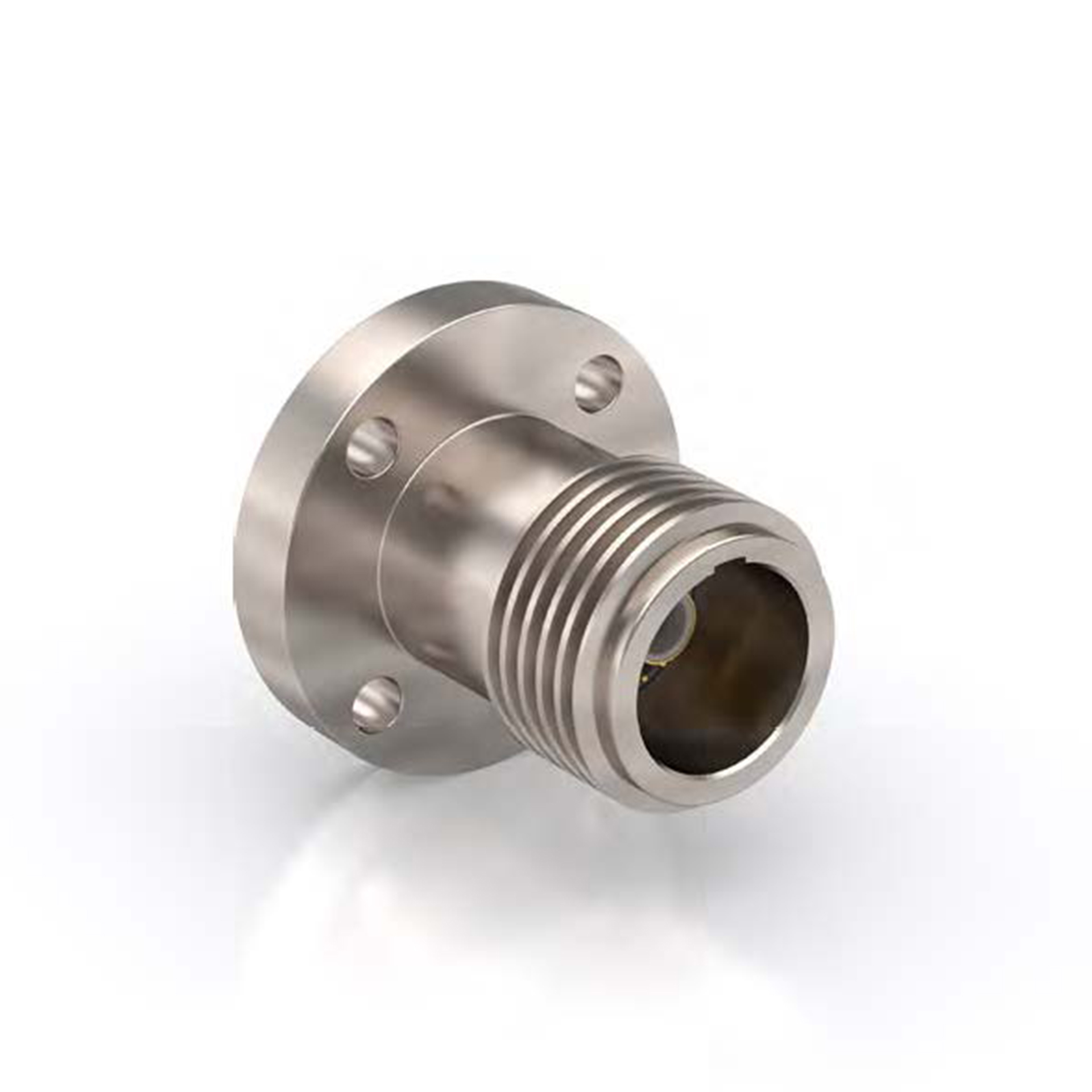

455 Series
The ‘455 Series’ connector combines the Dual sealing technology of the standard 400 series with the interface of the ‘550 series’ FCR. The primary signal path is carried through an impedance matched 75 ohm coaxial contact enabling HD through-put for the latest camera and data transmission requirements. The connector also allows for 6 electrical feed-throughs on individual 22 AWG contacts.
SPECIFICATIONS:
Shell Sizes: 1
Contacts: 6 Electrical and 1 Coax
Voltage Rating: Up to 600 Vdc / 415 Vac
Current Rating: Up to 4 Amps*
Ethernet Speed: 75 Ohms
Pressure Rating: (External) Up to 8,400 psi / 580 Bar (Open Face) Up to 8,400 psi / 580 Bar**
Temp Rating: -20°C to 70°C
* Rating is for the electrical contacts only
** Open Face pressure rating is on the receptacle only. This is only a safety feature, the connector cannot be electrically operational when subjected to open face pressure and must be employed in a mated condition or with sealing caps.
MATERIALS
Connector Shell: 316L S/Stl as standard. Also available in Titanium, Super Duplex, PEEK, Inconel, Monel & Aluminium.
Coupling Nut: Nickel Ali Bronze as standard. Also available in Titanium, Super Duplex, PEEK, Inconel, Monel & Aluminium.
Contacts: Copper Zinc Alloy with Gold over Nickel Plating.

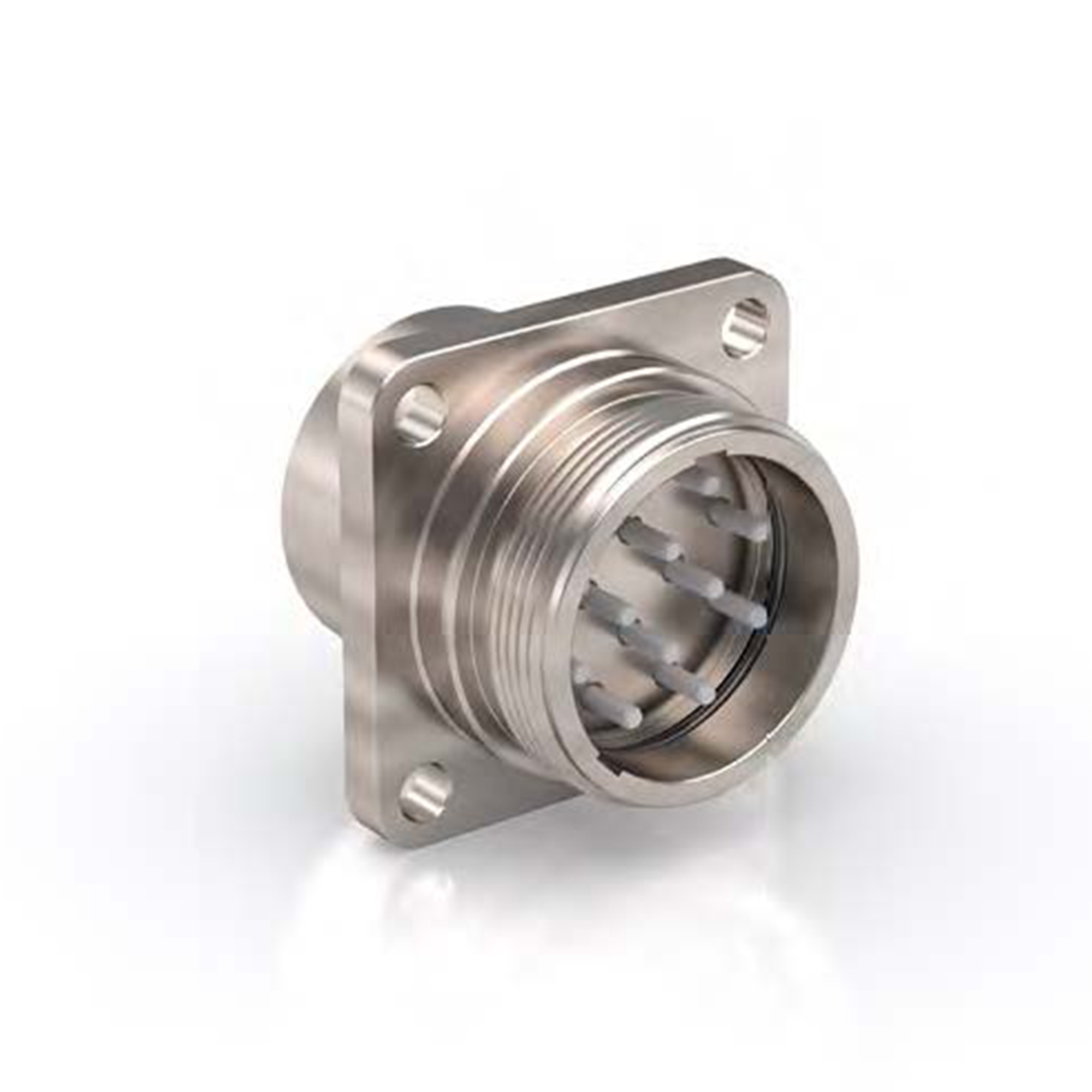

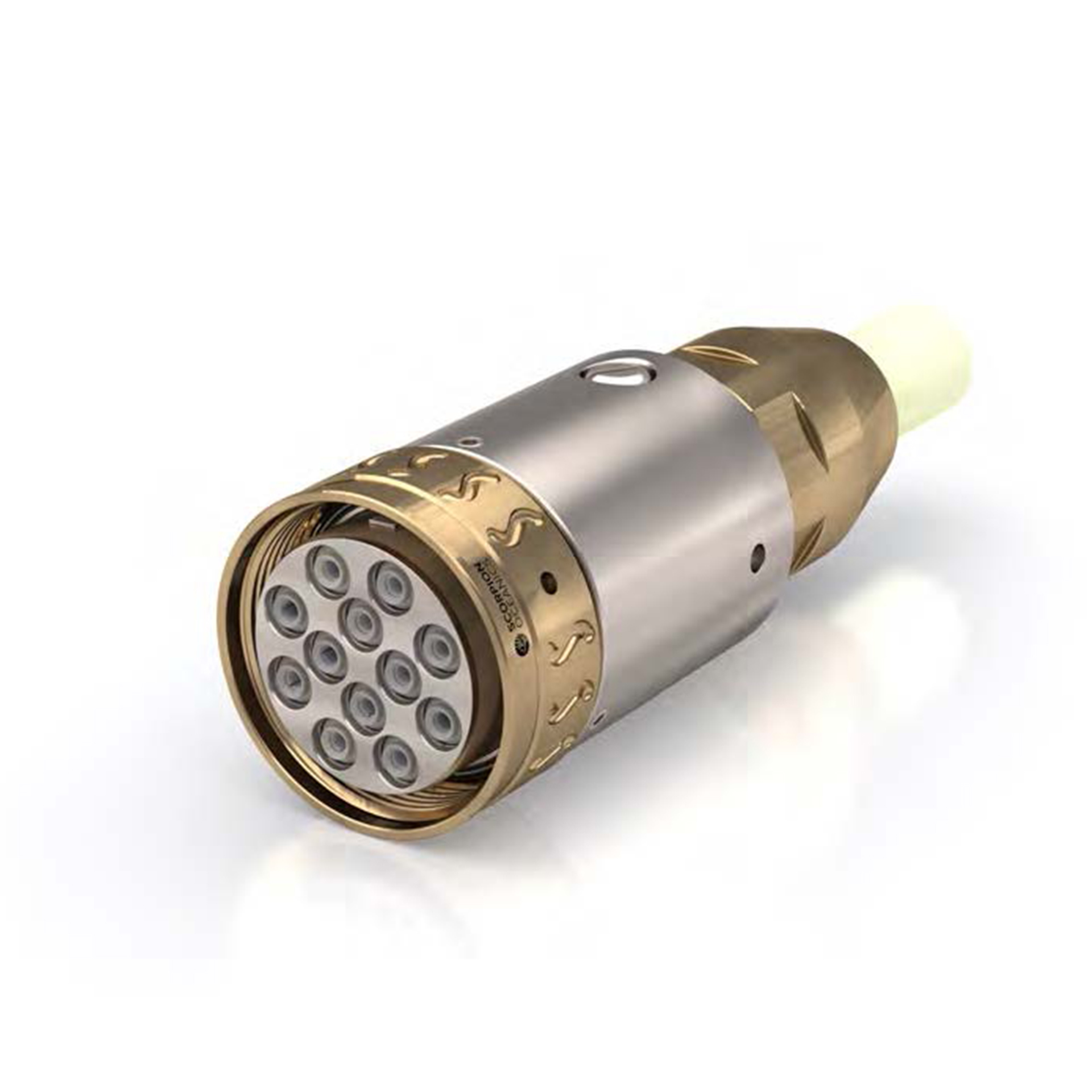

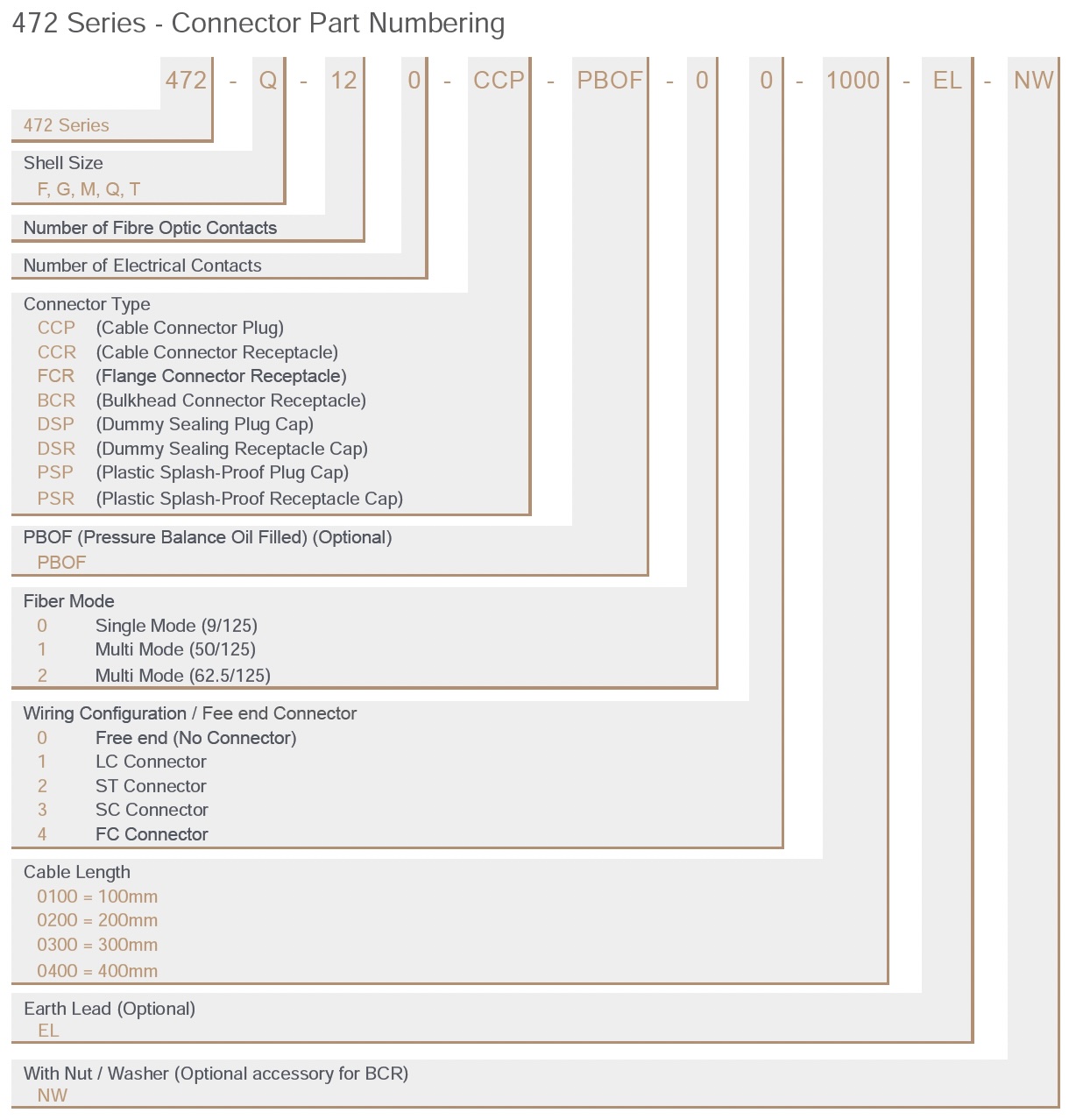

472 Series
The ‘472 Series’ allows for bespoke interconnection requirements with the ability to choose between electrical and fibre optic contacts in each standard shell pair.
SPECIFICATIONS:
Shell Sizes: 5
Contacts: 1 to 20
Pressure Rating: (External) Up to 7,500 psi / 515 Bar* (Open Face) Up to 7,500 psi / 515 Bar**
Temp Rating: Up to -20°C to 70°C Mating Cycles: >500
Electrical Contacts
Voltage Rating: Up to 600 Vdc / 415 Vac
Current Rating: Up to 4 Amps
Fibre Optic Contacts
Return Loss: (SM) <-50dB (MM)<-50dB
Insertion Loss: (SM) <0.5dB, Typ.<0.3dB*** (MM)<0.5dB, Typ.<0.3dB***
* Pressure rating subject to shell material and termination method.
** Open face rating is only a safety feature, the connector cannot be operational when subjected to open face pressure and must be employed in a mated condition or with sealing caps
*** Typical values against master connector.
MATERIALS
Connector Shell: 316L S/Stl as standard. Also available in Titanium, Super Duplex, PEEK, Inconel, Monel & Aluminium.
Coupling Nut: Nickel Ali Bronze as standard. Also available in Titanium, Super Duplex, PEEK, Inconel, Monel & Aluminium.
Contacts (Fibre Optic): Brass CZ112 with Zirconia Ceramic Ferrule.
Contacts (Electrical): Copper Zinc Alloy with Gold over Nickel Plating.
