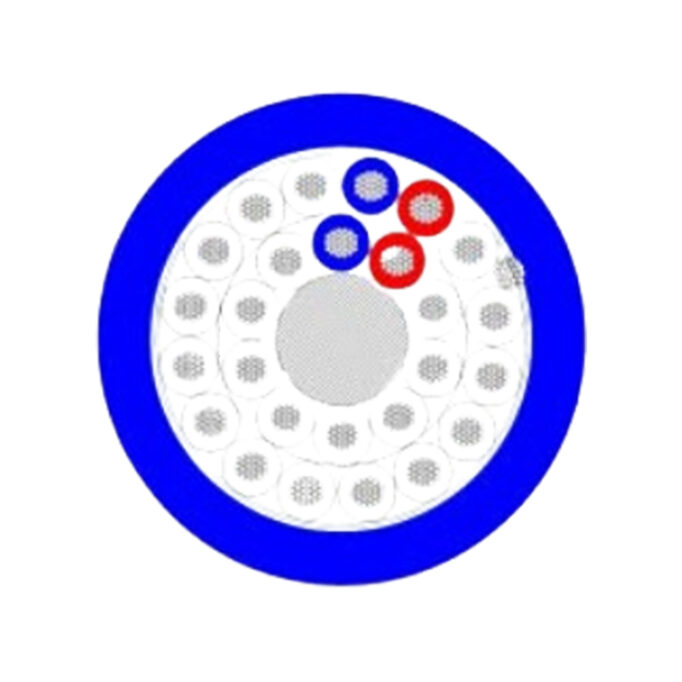

Cable, 1.0mm² Insulated Core, 26 conductor
Art nr 1074355 (CRE18672)
- Bespoke multicore cable for use in subsea applications.
Description
Component description:
- 1.0 mm² insulated core
- Qty: 26
- Conductor stranding: 32/0.2 mm TC
- Max DCR @ 20°C: 19 Ω/Km
- Weight: 11.8 kg/km
- Nominal diameter: 2.20 mm
Cable Assembly:
- Central filler: Solid LSOH
- Cable layer 1: Blue, red + 8 white right hand lay
- Cable layer 2: Blue, red + 14 white left hand lay
- Binder: Polyester tape 100% coverage
- Drain wire: 1.0 mm² tinned copper
- Screen: Aluminium polyester foil > 100% coverage
- Outer Sheath: HF polyurethane 85 shore a hardness
- Colour: Blue – RAL5015
- Radial wall thickness: 1.80mm nominal
- Diameter: 12.8mm +/-0.4mm
Construction:
- 1.0mm² Core:
- Colours: 2 x Blue, 2 x Red, 22 x White
- Insulation: High density polyethylene
- Radial thickness: 0.45mm
- Insulation diameter: 2.20mm
Cable characteristics:
- Operation temperature: -40°C to +80°C
- Cable weight in air: 457 kg/km
- Cable weight in seawater: 205 kg/km
- Bend radius static: 5 x diameter
- Bend radius dynamic: 10 x diameter
