Cable, 4 T.S.P. S (0.5 mm²)
4 Twisted screened pairs 0,5mm². Class 5 stranded tinned copper conductors, high density polyethylene insulation, aluminium tape and 0.5mm² class 5 stranded copper drain wire individual screen. Polyurethane outer sheath, radial thickness 2,0mm.
Overall diameter 12,8mm ± 0,5mm
Category: Cables & Connectors
Description

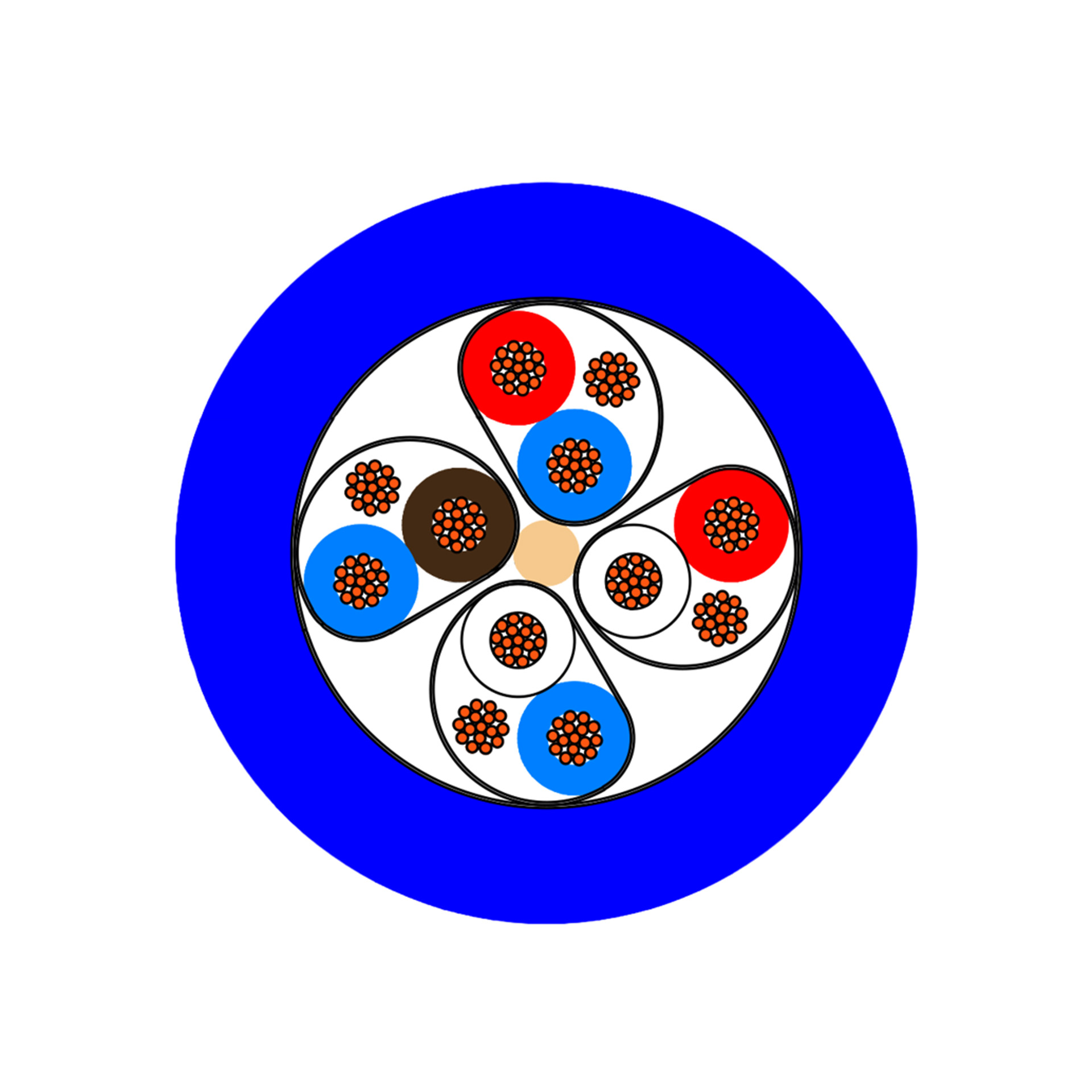

Cable Assembly:
- 4 x 0,5mm² H.D.P.E insulated twisted screened pair
- 1,55mm diameter filler
- Polyester tape
- Polyurethane outer sheath ( R.T. 2,0 mm)
Cable attributes – Approx.
- Nominal overall diameter – 12,8 mm
- Nominal radial thickness of outer sheath – 2,0 mm
- Weight of cable in air – 167 kg /km
- Weight of cable in seawater – 36 kg/km
- Weight of cable in freshwater – 39 kg/km
- Ambient operating temperature range – 20 °C to 60 °C
- Maximum conductor temperature – 70 °C
- Minimum recommended static bend radius- 102 mm
- Minimum recommended dynamic bend radius – 154 mm
- Maximum continuous length – 4000 m
- Maximum hydrostatic design pressure – 350 bar
