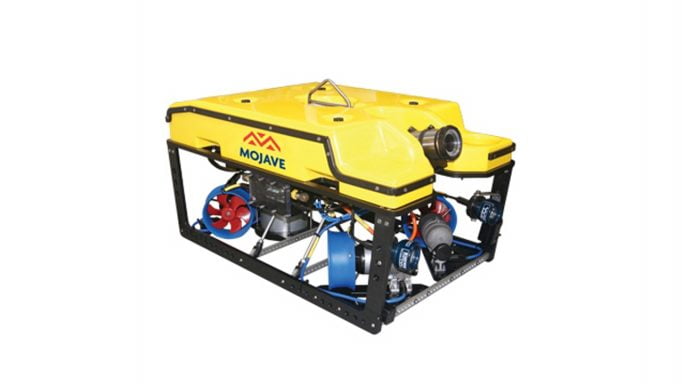

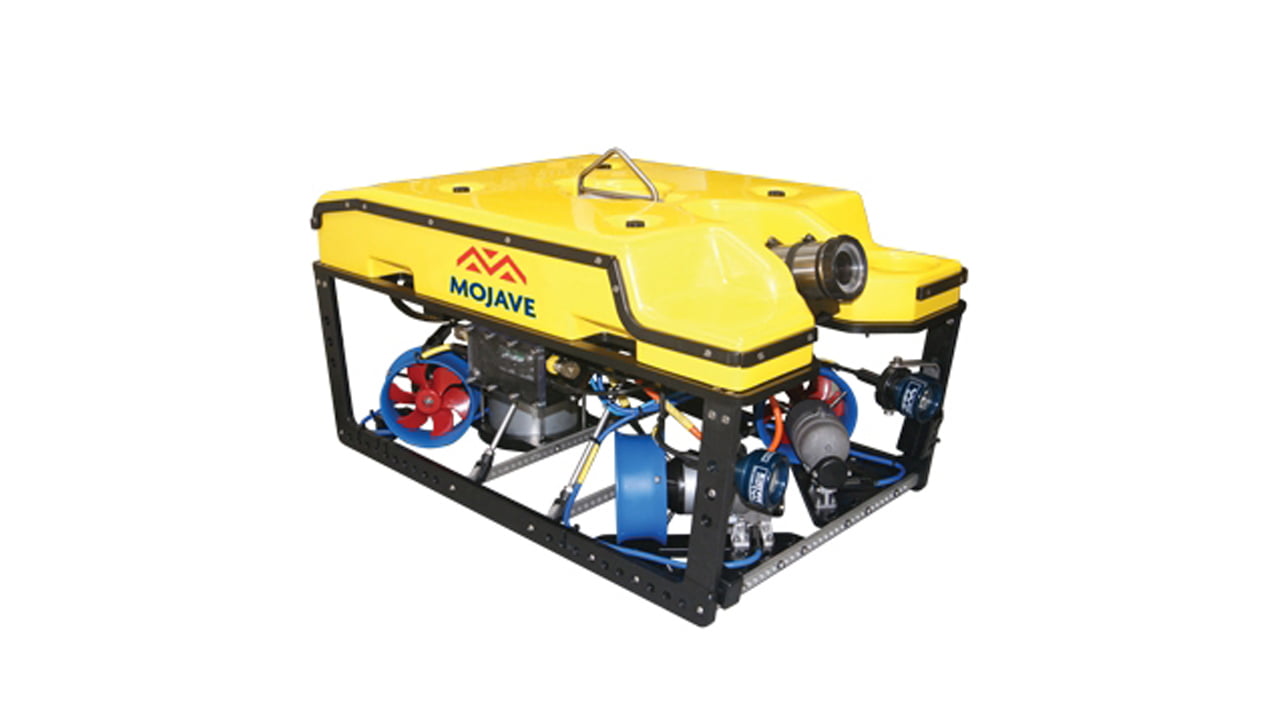

Sub-Atlantic ROV Mojave
Mojave is the most powerful observation ROV for its size.
Compact, ergonomic design and light weight construction allow for rapid set up and deployment using any domestic power supply. With world beating subCAN™ control & diagnostics system and proven thruster reliability, Mojave sets the standard by which the competition will be judged.
Description
Powerful things come in small packages
Mojave is the most powerful observation ROV for its size. Compact, ergonomic design and light weight construction allow
for rapid set up and deployment using any domestic power supply. With world beating subCAN control & diagnostics
system and proven thruster reliability, Mojave sets the standard by which the competition will be judged.
• 300m Depth Rating
• LED lighting as standard
• 5 x SPE-75 DC Thrusters
• 110-230VAC Single Phase
• Auto Position / INS Options
• Excellent payload options available
• Graphic User Interface (GUI) Control
• 53 Kg Horizontal 26 Kg Vertical Thrust
• Choice of Manipulators / Tooling
• Auto Heading and Depth
• Simple maintenance and operation
Mojave can be supplied with a complete range of specialist tooling / sensor skids for use Offshore or Inshore Oil & Gas,
Scientific, Port Security, Military, Civil Engineering and numerous other applications.
SENSOR RANGE
• Camera Tilt Unit with Basic Camera
• LED Lighting
• Depth Transducer
• Recovery Lift Point
• Additional Equipment Connector
• Altimeter Connector
OPERATIONAL EQUIPMENT
• Second Camera
• Acoustic Camera
• Sonar (various options)
• Altimeter
• CP Probe
• Various electric and hydraulic manipulator options
• Client junction box for quick change out of equipment
• Cleaning Brush
• Acoustic Transponder
• Recovery Beacon and Flasher
• Recovery Bullet & Lock Latch
• DP / INS Skid
AUTO-POSITIONING FEATURES
• Controlled by subCAN in conjunction with DVL and gyrocompass
• Hands off auto position
• Waypoint following to a predetermined route
• Return to location memory function
• Station Keeping in moving water
Technical information
Dimensions | |
Length: | 1000 mm |
Width: | 600 mm |
Height: | 500 mm |
Depth Rating: | 300 m |
Weight in Air: | 85 kg |
Payload Capacity: | 1.2 kg |
Power | 3.6 Kw |
Thruster Horizontal: | 4 x SPE75 |
Thruster Vertical: | 1 x SPE75 |
Bollard Pull – Nominal | |
Forward: | 53 kgf |
Lateral: | 53 kgf |
Vertical: | 26 kgf |
Surface Speed – Nominal | 3.5 Knots |
Spare twisted pair for additional equipment | |
CAT 7 tether available | |
Low voltage DC Power +5VDC / +12VDC / +24VDC |
