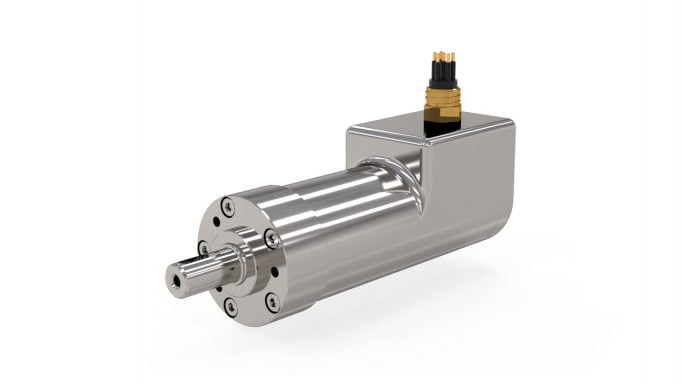

Electric Subsea Actuator 15 Nm
The Innova Electric Actuator is used for subsea applications and is prepared for permanent subsea installation.
Description
The Innova electric subsea actuator 15 Nm is a compacact actuator for low torque operation of valves, typically regulators. It is used for subsea applications and is prepared for permanent subsea installation. The actuator is oil-filled and pressure compensated. It provides peak torque up to 15 Nm and is mounted to equipment by standard OMM 32 interface.
Communication
- RS-232
- RS-485 (Modbus RTU)
- Analogue (Modbus or Canbus option)
Key features
Torque range: 0-15 Nm
Supply voltage : 24VDC – 4A (typ.)
Subsea electrical connector: MCBH8
Mechanical interface: OMM 32
Integrated drive PCB
Integrated pressure compensator
Dimenstions: 160 x 75 x 58 mm
Weight: 3,5 kg
